RELAY LOCATION

id092100800600

MZR 2.0 DISI i-stop

am3zzn00002796

1	Front fog light relay
2	Fuel injector relay
3	Headlight relay (LO)
4	Heated windshield relay No.2
5	Headlight relay (HI)
6	Fuel pump relay
7	Blower relay
8	Horn relay
9	TNS relay
10	Rear window defroster relay
11	A/C relay
12	Main relay
13	Headlight cleaner relay
14	Rear fog light relay
15	Heated windshield relay No.1
16	Starter relay
17	Charge relay
18	Power drive relay
19	Power relay

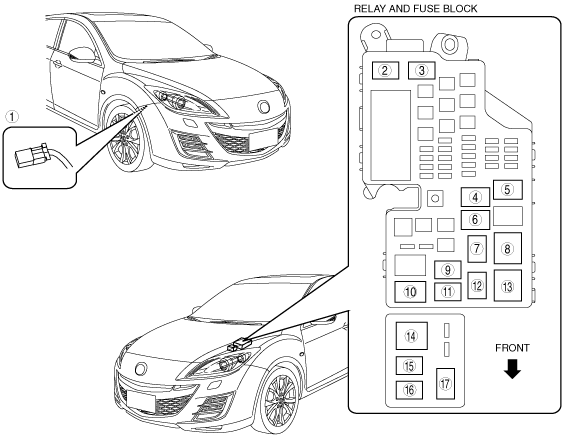

MZ-CD 1.6 (Y6), MZR-CD 2.2

am3zzn00002801

1	Front fog light relay
2	Heated windshield relay No.1
3	Headlight relay (LO)
4	Fuel warmer relay (MZ-CD 1.6 (Y6))
5	Headlight relay (HI)
6	Heated windshield relay No.2
7	Starter relay
8	Blower relay
9	Horn relay
10	TNS relay
11	Rear window defroster relay
12	A/C relay
13	Main relay
14	Glow relay (Except MZ-CD 1.6 (Y6) (EURO5 emission level))
15	Headlight cleaner relay
16	Rear fog light relay
17	Charge air cooler fan relay (MZ-CD 1.6 (Y6) (EURO4 emission level))

Z6, ZY, LF, L5

am3zzw00008252

1	Front fog light relay
2	Heated windshield relay No.1
3	Headlight relay (LO)
4	AT main relay
5	Headlight relay (HI)
6	Fuel pump relay
7	Starter relay
8	Blower relay
9	Horn relay
10	TNS relay
11	Rear window defroster relay
12	A/C relay
13	Main relay
14	Heated windshield relay No.2
15	Headlight cleaner relay
16	Rear fog light relay
17	Cooling fan relay No.1
18	Cooling fan relay No.3
19	Cooling fan relay No.2

L3 Turbo

am3zzn00002897

1	Front fog light relay
2	Fuel injector relay
3	Headlight relay (LO)
4	Fuel pump speed control relay
5	Headlight relay (HI)
6	Fuel pump relay
7	Starter relay
8	Blower relay
9	Horn relay
10	TNS relay
11	Rear window defroster relay
12	A/C relay
13	Main relay
14	Heated windshield relay No.2
15	Headlight cleaner relay
16	Rear fog light relay
17	Heated windshield relay No.1
