MAIN FUSE REMOVAL/INSTALLATION


id092100801500


Without i-stop

1.  Disconnect the negative battery cable.

2.  Remove nuts A and B shown in the figure.

am3zzw00007978

3.  Remove the main fuse.

4.  Install in the reverse order of removal.


With i-stop


Main fuse No.1

1.  Disconnect the negative battery cable.

2.  Remove nuts A and B shown in the figure.

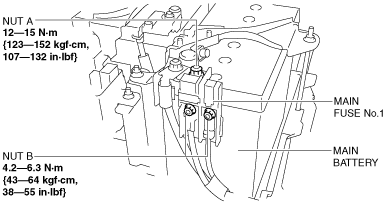

am3zzw00007979

3.  Remove the main fuse No.1.

4.  Install in the reverse order of removal.


Main fuse No.2

1.  Disconnect the negative battery cable.

2.  Remove nuts A and B shown in the figure.

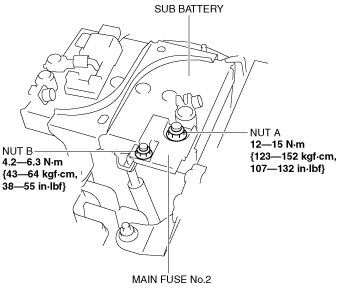

am3zzw00007981

3.  Remove the main fuse No.2.

4.  Install in the reverse order of removal.
