INFORMATION DISPLAY CONSTRUCTION/OPERATION

id092200100400

Display Function

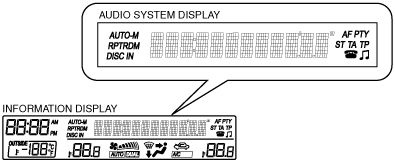

Audio system display

• Information related to the audio system such as sound volume and radio frequency are displayed based on signals from the audio unit.

am3uun00001068

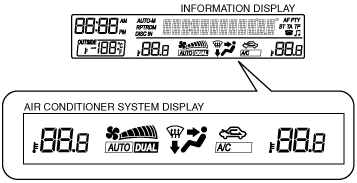

Air conditioner system display

• Information related to the air conditioning system such as airflow volume, temperature setting, and mode are displayed based on signals from the climate control system.

am3uun00001069

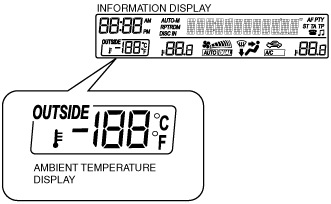

Ambient temperature display

• Ambient temperature is displayed based on ambient temperature signals detected by the ambient temperature sensor.

am3uun00001070

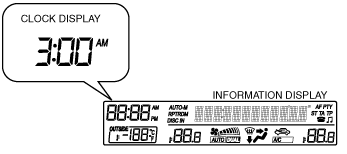

Clock display

• Display switching and settings are performed by operating the clock switch.

am3uun00001071

Welcome mode display

• If a welcome mode illumination signal is received from the instrument cluster, "Zoom-Zoom" is displayed on the audio display after approx. 1.8 s have elapsed.

am3uun00001241

• "Zoom-Zoom" is fully displayed and remains illuminated until a welcome illumination-off signal is received from the instrument cluster.

Input/output Check Function

• An input/output check function has been adopted which performs signal input to the display and examines the LCD according to the microcomputer built into the information display.

Check code

• When the signal output part indicated in the table below is activated, the micro-computer performs self-diagnosis of the signal input to the information display. Also, inspection of segments and dots is possible by illuminating the entire LCD.

Check code

Signal output part

Malfunction location

01

Information display

CAN system communication error

02

•  Audio unit

•  Climate control unit

•  Instrument cluster

Communication error to signal output part

04

Light switch (TNS position)

Light switch, BCM

06

Ignition switch^*1/Push button start^*2

•  Ignition switch^*1

•  Push button start^*2

07

Dimmer cancel switch (Instrument cluster)

•  Instrument cluster

•  Related wiring harness

—

LCD

—

Check code	Signal output part	Malfunction location
01	Information display	CAN system communication error
02	• Audio unit • Climate control unit • Instrument cluster	Communication error to signal output part
04	Light switch (TNS position)	Light switch, BCM
06	Ignition switch^1/Push button start^2	• Ignition switch^1 • Push button start^2
07	Dimmer cancel switch (Instrument cluster)	• Instrument cluster • Related wiring harness
—	LCD	—

*1 :Without advanced keyless entry and push button start system

*2 :With advanced keyless entry and push button start system

Check code display

• The check code and inspection display are displayed in the LCD air conditioner system display areas.

am6xun00000226
