LIGHTS-ON REMINDER WARNING ALARM CONSTRUCTION/OPERATION

id092200101600

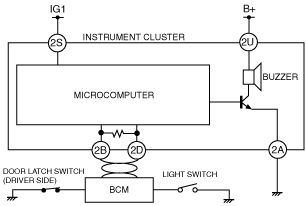

System Wiring Diagram

am3uun00000772

Operation

• The buzzer in the instrument cluster sounds continuously when all the following three conditions are met:

― Switch the ignition to off or ACC.

― The headlight switch is in the TNS or headlight position.

― The driver-side door is open (driver-side door switch is on).
