DRIVE INFORMATION SYSTEM OPERATION
id092200111200
Drive Information System Switch
• The modes can be changed in a cyclic pattern by pressing the INFO switch.
• The driver information system switch is comprised of an INFO switch.
• The data displayed at the time can be reset by holding the INFO switch for 1.5 s or more. Data is calculated as soon as the INFO switch is released.

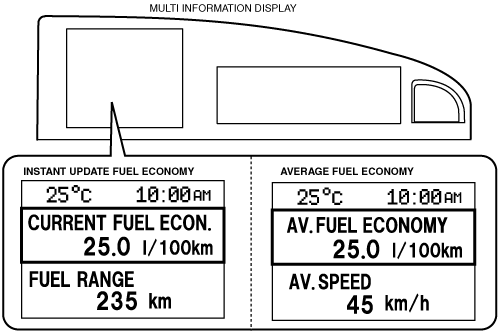

Drive Information System Display
• The display changes for each mode as shown.
