RVM INDICATOR LIGHT (GREEN)/RVM WARNING LIGHT (AMBER) CONSTRUCTION/OPERATION


id092200156100

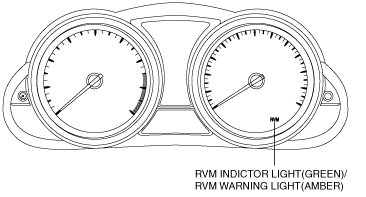

•  Equipped in the instrument cluster.
•  LEDs with low-power consumption and high durability have been adopted.
•  The RVM indicator light (green) illuminates while rear vehicle monitoring is operating and turns off when the system stops, both of which occur based on signals from the rear vehicle monitoring control modules.
•  If there is a malfunction or loss of function in a part of the rear vehicle monitoring system, the RVM warning light (amber) illuminates to make notification of the malfunction in the rear vehicle monitoring system.
am3zzn00002017
