MULTI INFORMATION DISPLAY CONSTRUCTION/OPERATION

id092200185900

Display Function

Audio system display

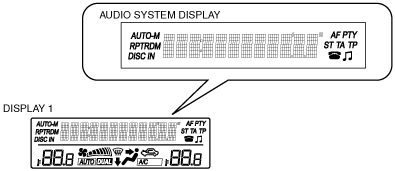

• Information related to the audio system such as sound volume and radio frequency are displayed in display 1 based on signals from the audio unit.

am3uun00001086

• Track and song name are displayed in display 2 when listening to CDs.

am3zzn00002353

Car-navigation system display

• Navigation information is displayed in display 2 while the vehicle is in transit. For details regarding the car- navigation system, refer to CAR-NAVIGATION SYSTEM.

Air conditioner system display

• Information related to the air conditioning system such as airflow volume, temperature setting, and mode are displayed in display 1 based on signals from the climate control system.

am3uun00001087

Drive information display

• The warning indicator has the following functions:

― Average fuel economy

― Average vehicle speed

― Instant update fuel economy

― Remaining possible travel distance

am3zzn00002644

Warning indicator display

• The following warning indicator displays are displayed in conjunction with the vehicle conditions.

• If several notification displays occur, they are displayed in order of precedence.

ORDER OR PRECEDENCE

WARNING DISPLAY CONTENT

INPUT SIGNAL SOURCE

WARNING DISPLAY CONDITIONS

1

CHECK TYRE PRESSURE

Instrument cluster

Displays when tire air pressure is not inflated to specification.

2

TIGHTEN FUEL CAP

PCM

Displays when pressure in fuel tank is not inflated to specification.

3

DOOR OPEN

BCM

Displays when door latch switch is on.

4

TRUNK OPEN

BCM

Displays when liftgate latch switch is on.

5

ADVANCED KEY NOT FOUND

Keyless control module

Displays when any of the following conditions is met and advanced key cannot be detected in vehicle.

•  Press push button start when ignition switch is off.

•  Driver's side door (driver's door latch switch: OFF) is open and ignition is switched to ACC or ON.

•  Any door or liftgate (door latch switch: OFF, liftgate latch switch: ON) is open and ignition is switched to ACC or ON, and all doors and liftgate (door latch switch: ON, liftgate latch switch: OFF) are closed.

6

STEERING WHEEL LOCK NOT RELEASED TURN WHEEL LEFT AND RIGHT

Keyless control module

Displays when steering lock cannot be released.

7

MOVE SHIFT LEVER TO P

Keyless control module

Displays when all of the following conditions are met:

•  Ignition is switched from ON to ACC.

•  Selector lever is at a position other than P.

8

USE AUXILIARY KEY

Keyless control module

Displays when all of the following conditions are met:

•  Auxiliary key is removed from key cylinder when ignition is at a position other than OFF.

•  Selector lever is at a position other than P.

•  Advanced key cannot be detected in vehicle.

9

DEPRESS BRAKE PEDAL TO START ENGINE (ATX)

Keyless control module

Displays when all of the following conditions are met:

•  Selector lever is in P position.

•  Push button start is pressed with brake pedal not depressed.

DEPRESS CLUTCH PEDAL TO START ENGINE (MTX)

Displays when push button start is pressed with clutch pedal not depressed.

10

RELEASE PARKING BRAKE

BCM

Displays when parking brake switch is on.

11

ICY ROAD CONDITIONS

Climate control unit

Displays when ambient temperature is 4 degrees C or less.

12

KEY BATTERY IS LOW

Keyless control module

Displays when all of the following conditions are met:

•  Ignition is switched from ON to OFF.

•  Keyless control module receives a low battery voltage signal sent from advanced key.

ORDER OR PRECEDENCE	WARNING DISPLAY CONTENT	INPUT SIGNAL SOURCE	WARNING DISPLAY CONDITIONS
1	CHECK TYRE PRESSURE	Instrument cluster	Displays when tire air pressure is not inflated to specification.
2	TIGHTEN FUEL CAP	PCM	Displays when pressure in fuel tank is not inflated to specification.
3	DOOR OPEN	BCM	Displays when door latch switch is on.
4	TRUNK OPEN	BCM	Displays when liftgate latch switch is on.
5	ADVANCED KEY NOT FOUND	Keyless control module	Displays when any of the following conditions is met and advanced key cannot be detected in vehicle. • Press push button start when ignition switch is off. • Driver's side door (driver's door latch switch: OFF) is open and ignition is switched to ACC or ON. • Any door or liftgate (door latch switch: OFF, liftgate latch switch: ON) is open and ignition is switched to ACC or ON, and all doors and liftgate (door latch switch: ON, liftgate latch switch: OFF) are closed.
6	STEERING WHEEL LOCK NOT RELEASED TURN WHEEL LEFT AND RIGHT	Keyless control module	Displays when steering lock cannot be released.
7	MOVE SHIFT LEVER TO P	Keyless control module	Displays when all of the following conditions are met: • Ignition is switched from ON to ACC. • Selector lever is at a position other than P.
8	USE AUXILIARY KEY	Keyless control module	Displays when all of the following conditions are met: • Auxiliary key is removed from key cylinder when ignition is at a position other than OFF. • Selector lever is at a position other than P. • Advanced key cannot be detected in vehicle.
9	DEPRESS BRAKE PEDAL TO START ENGINE (ATX)	Keyless control module	Displays when all of the following conditions are met: • Selector lever is in P position. • Push button start is pressed with brake pedal not depressed.
DEPRESS CLUTCH PEDAL TO START ENGINE (MTX)	Displays when push button start is pressed with clutch pedal not depressed.
10	RELEASE PARKING BRAKE	BCM	Displays when parking brake switch is on.
11	ICY ROAD CONDITIONS	Climate control unit	Displays when ambient temperature is 4 degrees C or less.
12	KEY BATTERY IS LOW	Keyless control module	Displays when all of the following conditions are met: • Ignition is switched from ON to OFF. • Keyless control module receives a low battery voltage signal sent from advanced key.

Maintenance monitor display

• Prior or post notifications are displayed when vehicle tire rotation and periodic maintenance periods have been set.

• When the multi information display notification setting is turned on, the following notifications are displayed.

• If there are notification displays, each is displayed for 5 s after the ignition is switched ON.

• Pressing the ENTER switch on steering wheel during a notification display will cancel it. Unless the notification display has been cleared, it will display each time the ignition is switched ON.

DISPLAY ITEM

DISPLAY CONTENT

NOTIFICATION DISPLAY TYPE

DISPLAY CONDITION

Tire rotation

Remaining distance

Prior notification

Displays if the remaining distance corresponding to the set value is 500—0 km {311—0 mile}

Periodic inspection

Remaining distance

Prior notification

Displays if the remaining distance corresponding to the set value is 500—0 km {311—0 mile}

Post notification

Displays if the traveled distance corresponding to the set value surpasses 0—500 km {0—311 mile}

Remaining days

Prior notification

Displays if the remaining days corresponding to the set value are 15—0 days prior to schedule

Post notification

Displays if the number of days corresponding to the set value is 0—15 days post schedule

DISPLAY ITEM	DISPLAY CONTENT	NOTIFICATION DISPLAY TYPE	DISPLAY CONDITION
Tire rotation	Remaining distance	Prior notification	Displays if the remaining distance corresponding to the set value is 500—0 km {311—0 mile}
Periodic inspection	Remaining distance	Prior notification	Displays if the remaining distance corresponding to the set value is 500—0 km {311—0 mile}
Post notification	Displays if the traveled distance corresponding to the set value surpasses 0—500 km {0—311 mile}
Remaining days	Prior notification	Displays if the remaining days corresponding to the set value are 15—0 days prior to schedule
Post notification	Displays if the number of days corresponding to the set value is 0—15 days post schedule

• If several notification displays occur, they are displayed in order of precedence.

ORDER OR PRECEDENCE

DISPLAY CONTENT

1

Periodic inspection prior notification

2

Periodic inspection post notification

3

Tire rotation prior notification

ORDER OR PRECEDENCE	DISPLAY CONTENT
1	Periodic inspection prior notification
2	Periodic inspection post notification
3	Tire rotation prior notification

Note

• If both prior and post notifications are established simultaneously, only the post notification is displayed.

Ambient temperature display

• Ambient temperature is displayed based on ambient temperature signals detected by the ambient temperature sensor.

am3zzn00002355

Clock display

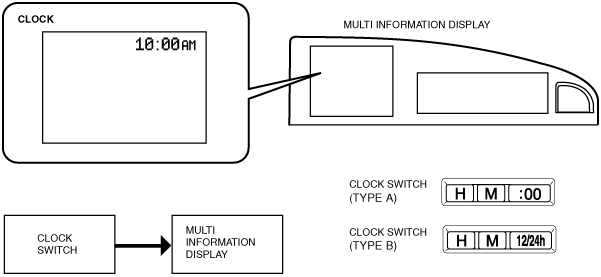

• Display switching and settings are performed by operating the clock switch.

am3zzn00002356

Welcome mode display

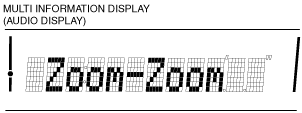

• If a welcome mode illumination signal is received from the instrument cluster, "Zoom-Zoom" is displayed on the audio display after approx. 1.8 s have elapsed.

am3zzn00003079

• "Zoom-Zoom" is fully displayed and remains illuminated until a welcome illumination-off signal is received from the instrument cluster.

Input/output check function

• An input/output check function has been adopted which performs signal input to the display and examines the LCD according to the microcomputer built into the multi information display.

Check code

• When the signal output part indicated in the table below is activated, the micro-computer performs self-diagnosis of the signal input to the multi information display. Also, inspection of segments and dots is possible by illuminating the entire LCD.

Check code

Signal output part

Malfunction location

01

Multi information display

CAN system communication error

02

•  Audio unit

•  Climate control unit

•  Instrument cluster

Communication error to signal output part

04

Light switch (TNS position)

Light switch, BCM

06

Ignition switch^*1/Push button start^*2

•  Ignition switch^*1

•  Push button start^*2

07

Dimmer cancel switch (Instrument cluster)

•  Instrument cluster

•  Related wiring harness

—

LCD

—

Check code	Signal output part	Malfunction location
01	Multi information display	CAN system communication error
02	• Audio unit • Climate control unit • Instrument cluster	Communication error to signal output part
04	Light switch (TNS position)	Light switch, BCM
06	Ignition switch^1/Push button start^2	• Ignition switch^1 • Push button start^2
07	Dimmer cancel switch (Instrument cluster)	• Instrument cluster • Related wiring harness
—	LCD	—

*1 :Without advanced keyless entry and push button start system

*2 :With advanced keyless entry and push button start system

Check code display

• The check code and inspection display are displayed in the LCD air conditioner system display areas or audio system display areas.

am6xun00000226
