REAR VEHICLE MONITORING CONTROL MODULE OPERATION
id092200256500
• The rear vehicle monitoring control module emits microwaves to detect an oncoming vehicle's position and speed information via the reflected microwaves.

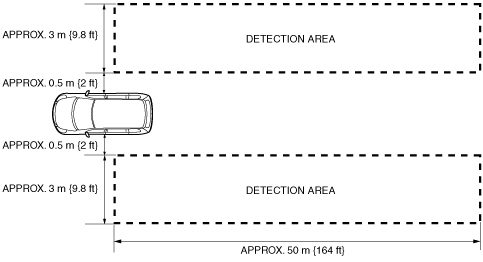

Detection area
• Forward and rear directions: From B-pillar trim towards vehicle rear at distance of approx. 50 m {164 ft}
• Lateral direction:
Approx. 3 m {9.8 ft} for vehicle side surface
