INSTRUMENT CLUSTER REMOVAL/INSTALLATION

id092200800500

Caution

•  When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. Replacing the instrument cluster without performing the configuration procedure will result in system malfunction.

1.  Perform the instrument cluster configuration when replacing it. (See INSTRUMENT CLUSTER CONFIGURATION.)

2.  Disconnect the negative battery cable.

3.  Remove the column cover (upper). (See COLUMN COVER REMOVAL/INSTALLATION.)

4.  Remove the screws.

am3uuw00004787

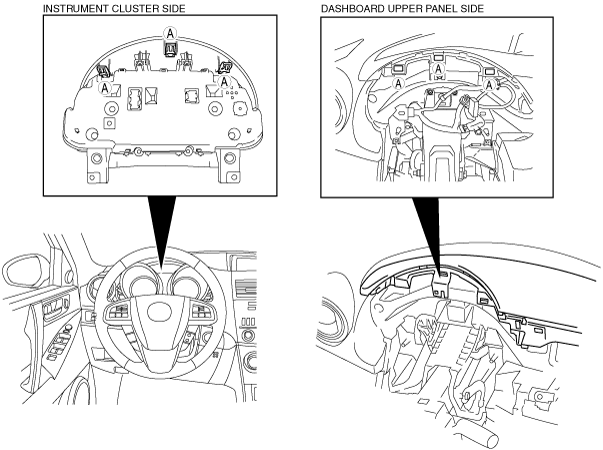

5.  Pull the instrument cluster outward and remove the clip A from the dashboard upper panel.

am3zzw00007734

6.  Disconnect the connectors.

am3zzw00007735

7.  Remove the clip.

8.  Install in the reverse order of removal.

9.  Program the immobilizer system-related parts when replacing the instrument cluster. (With keyless entry system) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM].)

Caution

•  The removed instrument cluster should be placed with the display side up to prevent grease from leaking from the meters.

am3uuw00002952
