ULTRASONIC SENSOR CONSTRUCTION/OPERATION


id092200887900

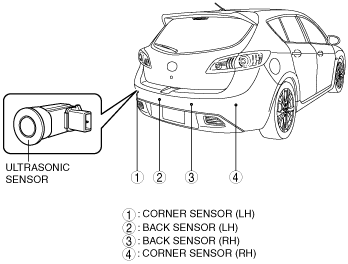

•  Consists of four ultrasonic sensors, two on the back of the rear bumper, and one on each corner of the rear bumper.
am3zzn00001991
•  The ultrasonic sensor is integrated with the connector and installed to the rear bumper using a retainer.
•  A flat type ultrasonic sensor with no concavity on its front edge surface has been adopted. The color is the same as the body color.
•  All ultrasonic sensors are identical.
