CLOCK SWITCH INSPECTION

id092200889000

Note

•  Clock switch built with the hazard warning switch.

1.  Disconnect the negative battery cable.

2.  Remove the clock switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

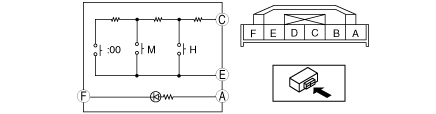

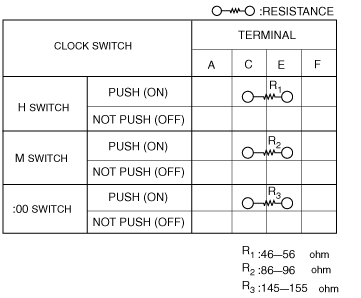

3.  Verify resistance between the clock switch terminals.

am3zzw00009779

•  If the resistance is not as specified, replace the clock switch.

am3zzw00009780

4.  Connect the positive battery to the clock switch terminal A, the negative battery to the clock switch terminal F.

5.  Verify the LED illuminates.

•  If there is any malfunction, replace the clock switch.
