MULTI INFORMATION DISPLAY OUTLINE
id092200996100

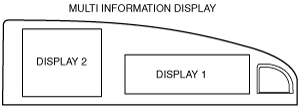

• The multi information display is composed of two displays, and the following displays are performed for each system based on signals from each unit.
Display 1
-
― Audio system display
― Air conditioner system display
― Welcome mode display
Display 2
-
― Audio system display
― Car navigation system display
― Drive information system display
― Warning indicator display
― Maintenance monitor display
― Ambient temperature display
― Clock display
• Two types of displays (monochrome, color) are available for display 2 depending on the specification.
• An input/output check mode has been adopted which detects and displays signals input to and output from the multi information display. (On display 1 only)
• An on-board diagnostic system has been adopted which records DTCs if a malfunction occurs in the input/output signals, other units, or the CAN system.
