CONTROLLER AREA NETWORK (CAN) SYSTEM WIRING DIAGRAM [L.H.D.]

id0940001034b4

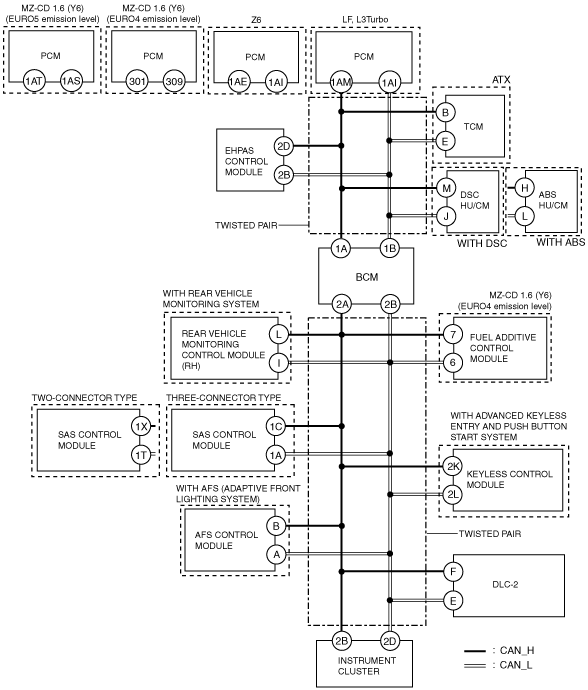

HS-CAN (Except MZR-CD 2.2, MZR 2.0 DISI i-stop)

am3zzn00002039

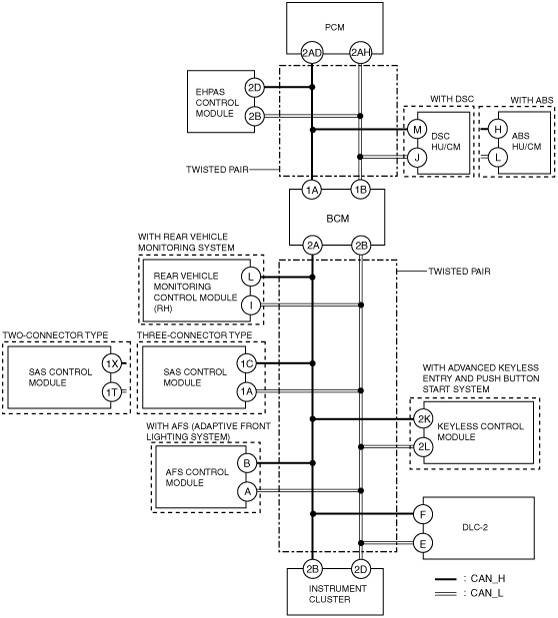

HS-CAN (MZR-CD 2.2)

am3zzn00002040

HS-CAN (MZR 2.0 DISI i-stop)

am3zzn00002442

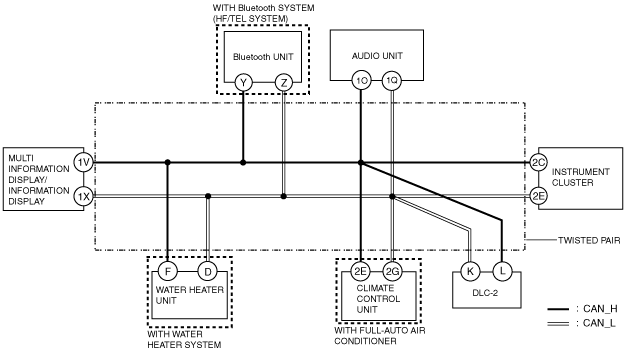

MS-CAN

am3zzn00002041
