CONTROLLER AREA NETWORK (CAN) SYSTEM WIRING DIAGRAM [R.H.D.]

id0940001034b5

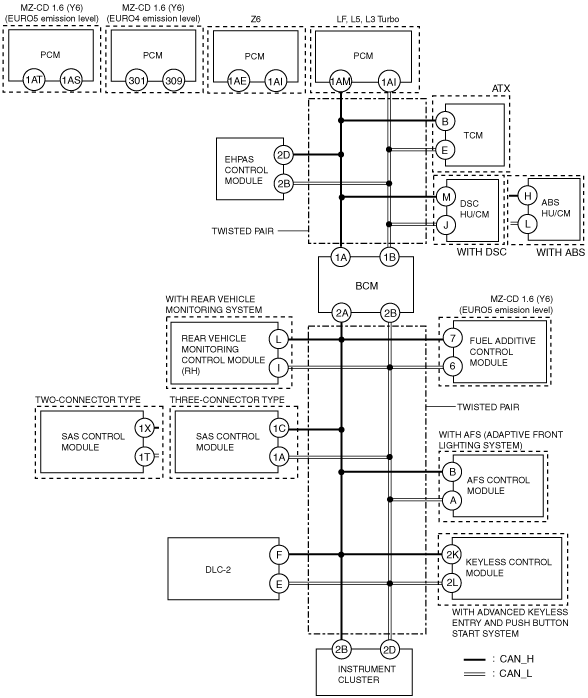

HS-CAN (Except MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY)

am3zzn00002042

HS-CAN (MZR-CD 2.2)

am3zzn00002043

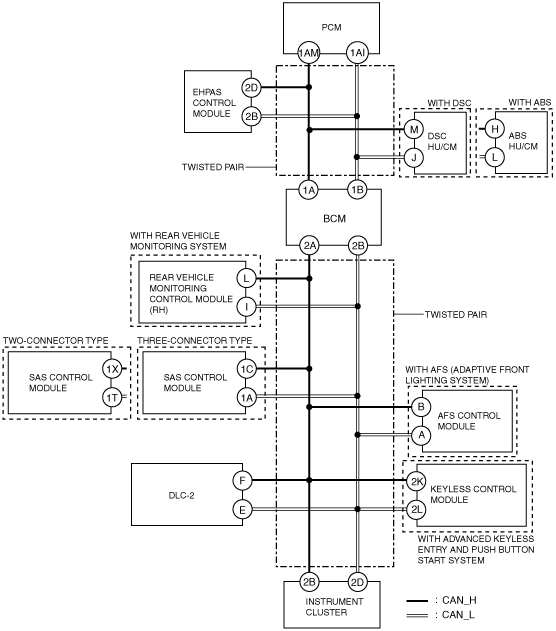

HS-CAN (MZR 2.0 DISI i-stop)

am3zzn00002443

HS-CAN (ZY)

am3zzn00002954

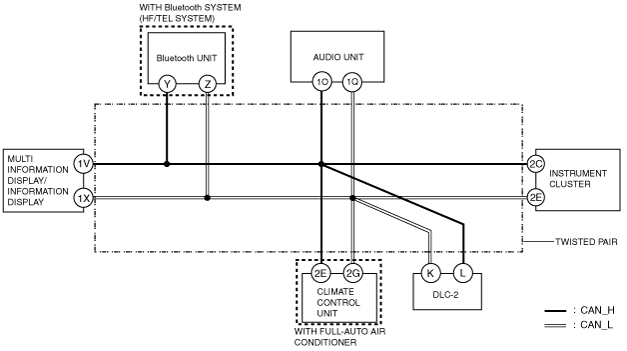

MS-CAN

am3zzn00002044
