WHEEL APRON PANEL COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008614900

Symbol Mark

am3uub00000149

Removal Procedure

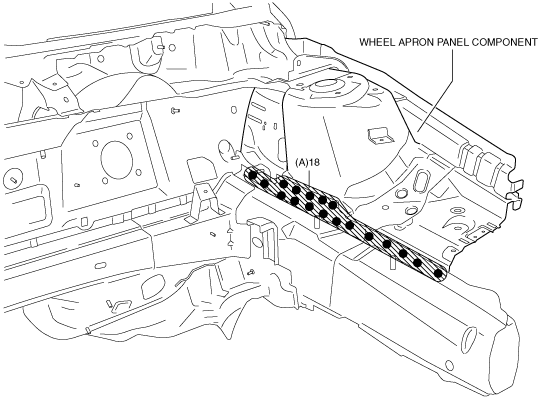

1.  Plug weld the 18 locations indicated by (A) shown in the figure.

am3uub00000254

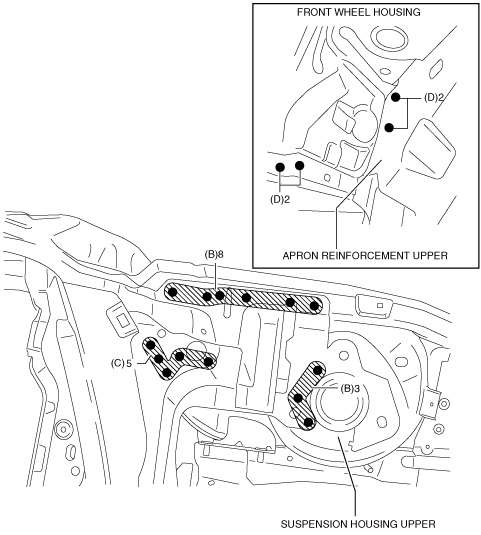

2.  Drill the 11 locations indicated by (B), 5 locations indicated by (C) shown in the figure.

3.  Drill the 4 locations indicated by (D) from the front wheel housing.

am3uub00000255

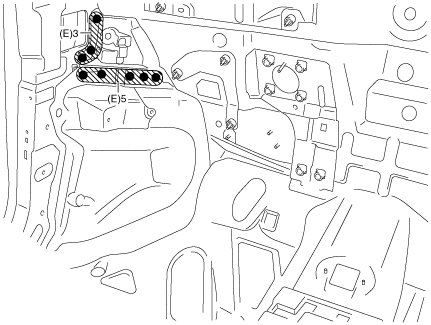

4.  Drill the 8 locations indicated by (E) shown in the figure.

aaxjjb00000121

5.  Remova the wheel apron panel compartment.
