APRON REINFORCEMENT (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008741500

Symbol Mark

am3uub00000132

Removal Procedure

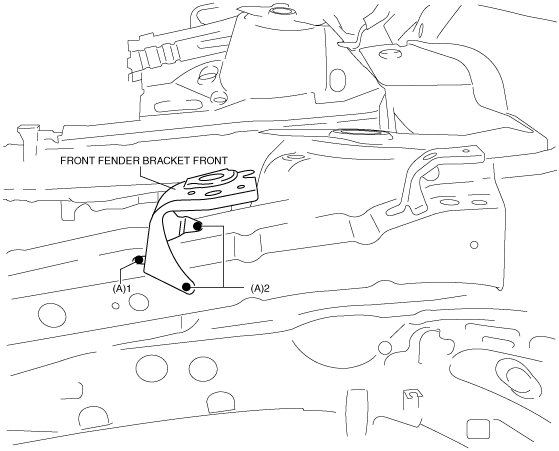

1.  Drill the 3 locations indicated by (A) shown in the figure while remove the front fender bracket front.

am3uub00000249

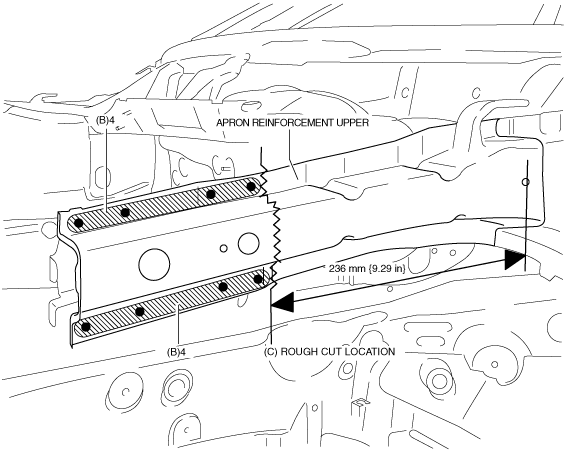

2.  Drill the 8 locations indicated by (B) shown in the figure.

3.  Rough cut at the locations indicated by (C) shown in the figure to remove damaged parts.

am3zzb00000078

4.  Remove the apron reinforcement lower.

5.  Rough cut at the locations indicated by (D) shown in the figure to remove damaged parts.

am3uub00000135

6.  Remove the apron reinforcement upper.
