FRONT SIDE FRAME COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008741900

Symbol Mrak

am3uub00000152

Removal Procedure

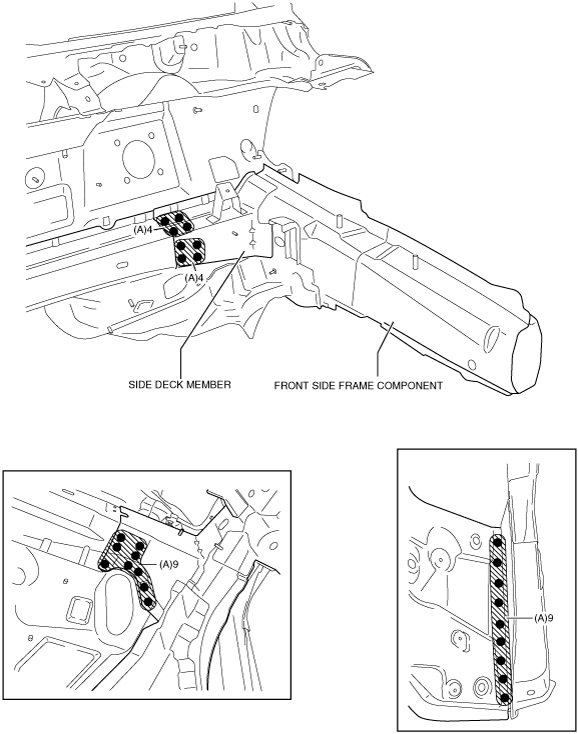

1.  Drill the 26 location indicated by (A) shown in the figure.

am3uub00000153

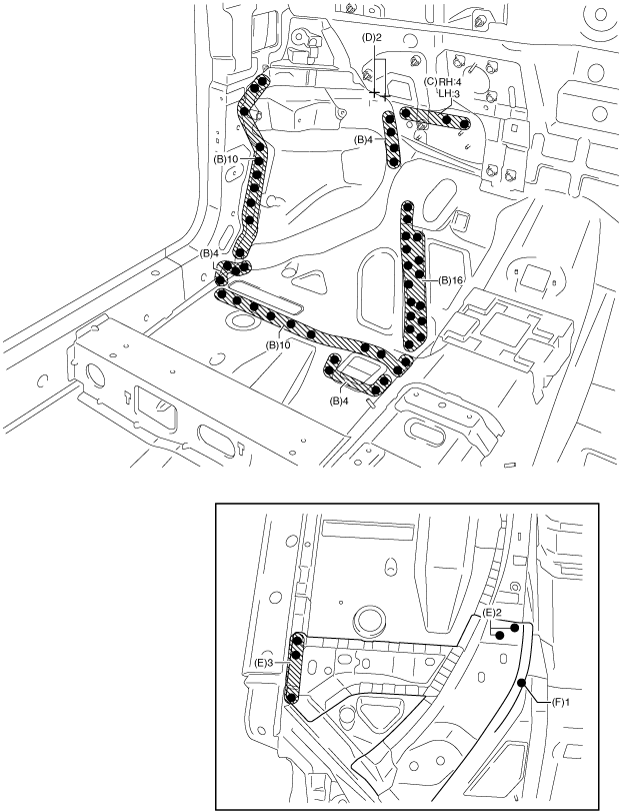

2.  Drill the 48 locations indicated by (B) shown in the figure.

3.  Drill the 3 locations on the left side indicated by (C) and 4 locations on the right side.

4.  Using a belt grinder grinde the 2 location indicated by (D) shown in the figure.

5.  Drill the 5 locations indicated by (E) from the bottom.

6.  Drill the 1 location indicated by (F) from the bottom, as it cannot be seen from the interior.

am3uub00000154

7.  Remove the front side frame component.
