FRONT SIDE FRAME (PARTIAL CUTTING) INSTALLATION [PANEL REPLACEMENT]

id098008742200

Symbol Mark

am3uub00000161

Installation Procedure

Caution

•  The cut-and-joint area indicates the maximum size range of the installation position.

1.  Make a reinforcement panel using the material of the front side frame.

2.  To cut-and-join the new and existing parts, cut at the locations for the new part indicated in the figure below and bevel the locations where the new and existing parts are joined.

3.  When installing the new parts, trial-fit new and existing parts, and then measure and adjust the body to conform with standard dimensions.

4.  To install the inner, trial-fit the new and existing parts, weld the existing parts and the reinforcement, and then butt weld the new and existing parts.

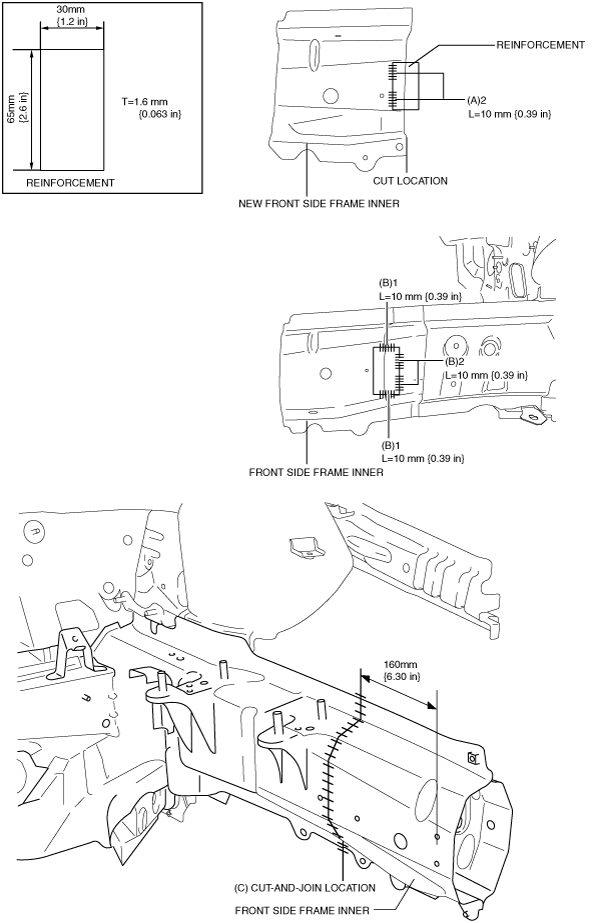

5.  Continuous CO² arc weld the 2 locations indicated by (A) shown in the figure while install the reinforcement.

6.  Continuous CO² arc weld the 4 locations indicated by (B) shown in the figure.

7.  Butt weld indicated by (C) shown in the figure while installa the front side frame inner.

am3zzb00000079

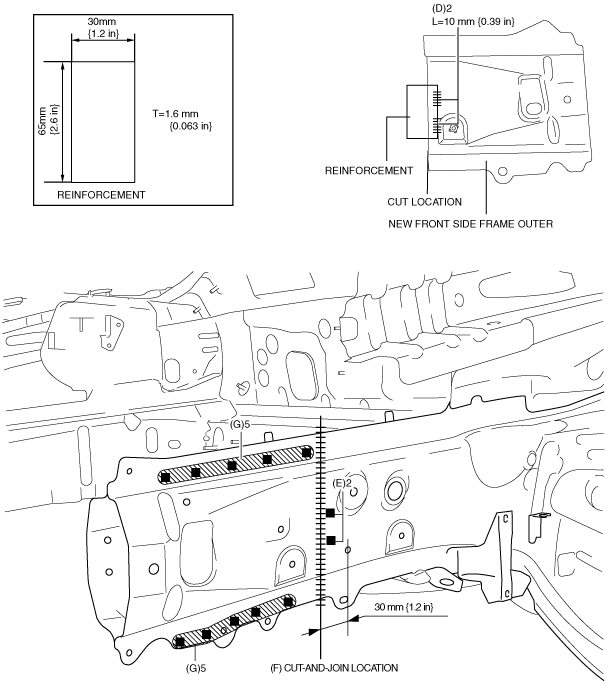

8.  Continuous CO² arc weld the 2 locations indicated by (D) shown in the figure while install the reinforcement.

9.  Plug weld the 2 locations indicated by (E) shown in the figure.

Note

•  Because the outer cannot be welded to the existing parts from the inside of the frame, drill 2 plug weld holes at the locations indicated by (E) on the existing parts. Install the reinforcement and the existing parts by plug welding from the outside of the frame, then butt weld the new and existing parts.

10.  Butt weld indicated by (F) shown in the figure.

11.  Plug weld the 10 locations indicated by (G) shown in the figure while installa the front side frame outer.

am3uub00000163

12.  Grind the area where the inner and outer are butt welded with a disk grinder to finish the surface.
