CENTER PILLAR REMOVAL [PANEL REPLACEMENT]


id098008743900


Symbol Mark

am3uub00000181

Removal Procedure

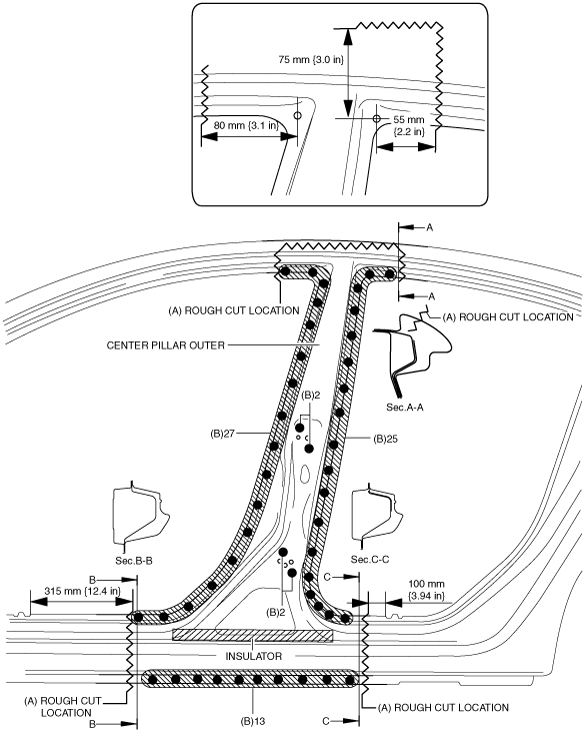

1.  Rough cut area locations indicated by (A) shown in the figure.

2.  Drill the 69 locations indicated by (B) shown in the figure while center pillar outer.

Caution
•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

am3uub00000182

3.  Drill the 20 locations indicated by (C) shown in the figure while remove the center pillar reinforcement.

am3uub00000183

4.  Drill the 9 locations indicated by (D) shown in the figure while remove the center pillar inner.

am3uub00000184
