ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

am3uub00000234

Remobal Procedure

4SD

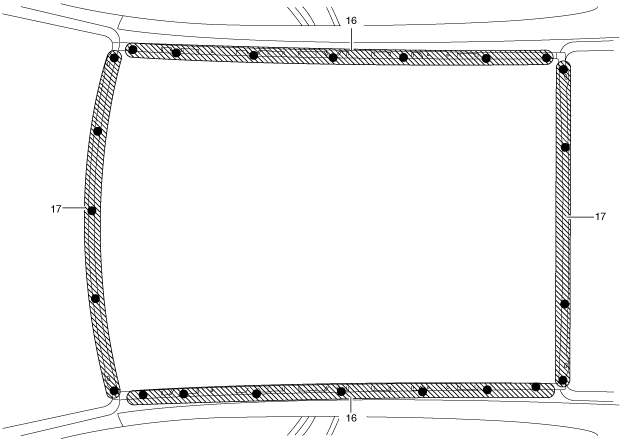

1.  Drill the 66 locations shown in the figure.

am3uub00000281

2.  Remove the roof panel.

5HB

1.  Drill the 109 locations shown in the figure.

am3uub00000282

2.  Remove the roof panel.
