UNDERBODY DIMENSIONS [DIMENSIONS]

id098010990000

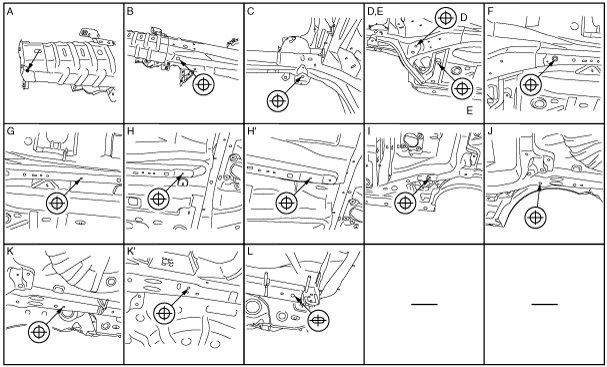

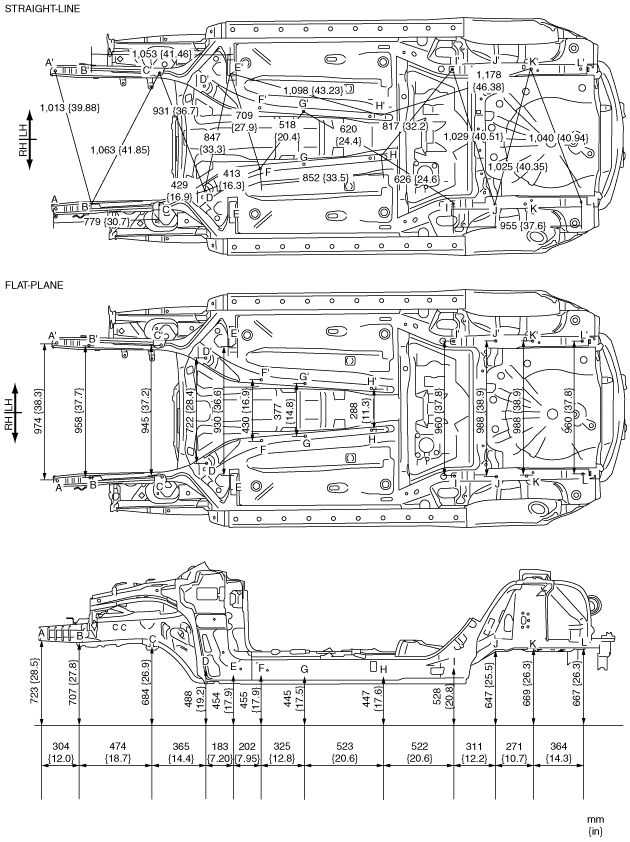

• The following figure is a bottom view.

am3uub00000048

am3uub00000049

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front bumper bracket fitting location

-

B

Front side frame datum hole

φ16 {0.63}

C

Front suspension member installation hole

φ18 {0.71}

D

Front suspension member installation hole

φ22 {0.87}

E

Toque box datum hole

φ12 {0.47}

F

Front B frame datum hole

φ16 {0.63}

G

Front B frame datum hole

φ7 {0.3}

H

Front B frame datum hole

φ7 {0.3}

I

Rear side frame datum hole

φ16 {0.63}

J

Rear suspension member installation hole

φ20 {0.79}

K

Rear side frame datum hole

φ17 {0.67}

L

Rear side frame datum slot

16×20

{0.63×0.79}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front bumper bracket fitting location	-
B	Front side frame datum hole	φ16 {0.63}
C	Front suspension member installation hole	φ18 {0.71}
D	Front suspension member installation hole	φ22 {0.87}
E	Toque box datum hole	φ12 {0.47}
F	Front B frame datum hole	φ16 {0.63}
G	Front B frame datum hole	φ7 {0.3}
H	Front B frame datum hole	φ7 {0.3}
I	Rear side frame datum hole	φ16 {0.63}
J	Rear suspension member installation hole	φ20 {0.79}
K	Rear side frame datum hole	φ17 {0.67}
L	Rear side frame datum slot	16×20 {0.63×0.79}

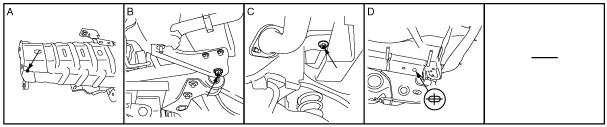

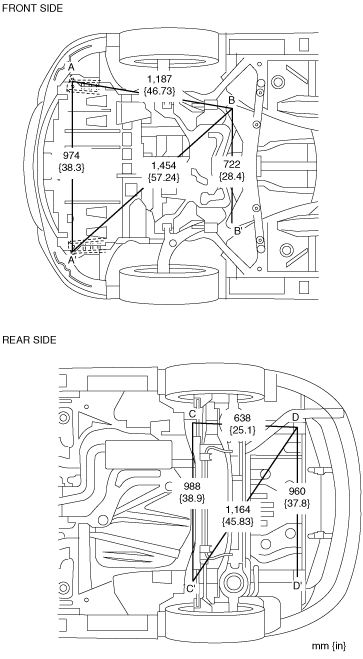

With Mechanical Part Dimension

am3uub00000069

am3uub00000070
