FRONT BODY DIMENSIONS (2) [DIMENSIONS]

id098010990200

L.H.D.

Vehicle identification number

•  JM7 BL04F**#, JM7 BL04Z**#, JM7 BL12F**#, JM7 BL12Z**#, JM7 BL14F**#, JM7 BL14Z**#, JM7 BL22F**#, JM7 BL22Z**#, JM7 BL24F**#, JM7 BL24Z**#

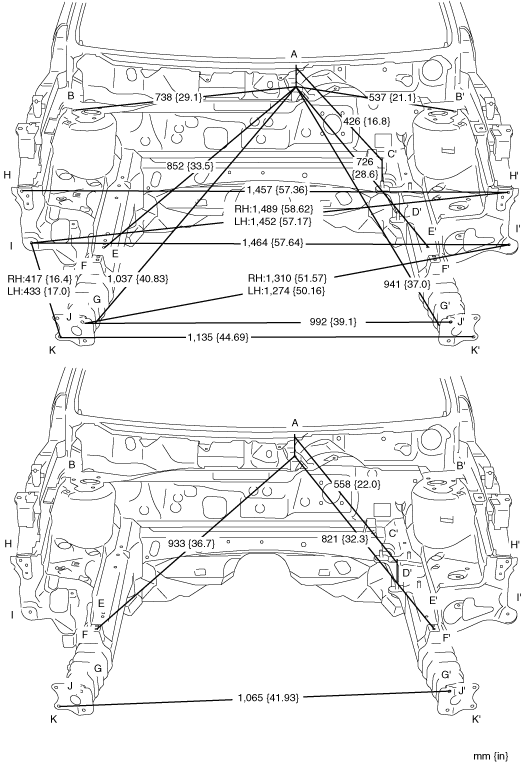

am3zzb00000328

am3uub00000053

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front wiper motor and link installation hole	φ7 {0.3}
B	Front suspension upper mounting installation hole	φ12.8 {0.504}
C	No.4 engine mounting bracket installation bolt	M10 {0.39}
D	No.4 engine mounting bracket installation bolt	M10 {0.39}
E	Front side frame datum hole	φ7 {0.3}
F	Front side frame datum hole	φ10 {0.39}
G	Front bumper stay datum s	12×18 {0.47×0.71}
H	Front fender stay installation hole	φ7 {0.3}
I	Shroud side panel datum slot	RH:9×10 {0.36×0.39} LH:φ7 {0.3}
J	Front bumper reinforcement installation hole	φ12 {0.47}
K	Front bumper reinforcement installation hole	φ12 {0.47}

Vehicle identification number

•  JMZ BL12F60#, JMZ BL12F70#, JMZ BL12Y20#, JMZ BL12Z20#, JMZ BL12Z50#, JMZ BL14F60#, JMZ BL14F70#, JMZ BL14Y20#, JMZ BL14Z20#, JMZ BL14Z50#, JMZ BLA2A60#, JMZ BLA2C60#, JMZ BLA2F70#, JMZ BLA2G60#, JMZ BLA2Y60#, JMZ BLA2Z20#, JMZ BLA2Z50#, JMZ BLA4360#, JMZ BLA4A60#, JMZ BLA4C60#, JMZ BLA4F70#, JMZ BLA4G60#, JMZ BLA4Y60#, JMZ BLA4Z20#, JMZ BLA4Z50#, JM7 BL04F**#, JM7 BL04Z**#, JM7 BL12F**#, JM7 BL12Z**#, JM7 BL14F**#, JM7 BL14Z**#, JM7 BL22F**#, JM7 BL22Z**#, JM7 BL24F**#, JM7 BL24Z**#

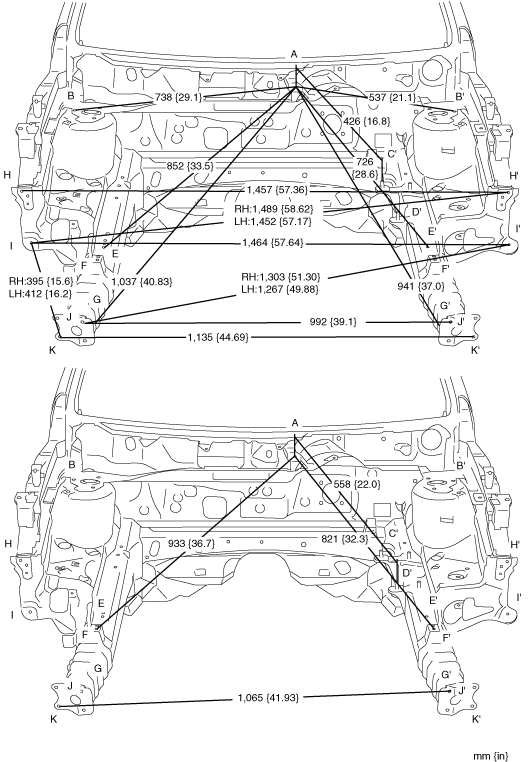

am3zzb00000329

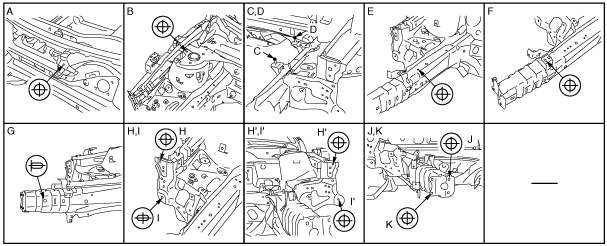

am3zzb00000070

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front wiper motor and link installation hole	φ7 {0.3}
B	Front suspension upper mounting installation hole	φ12.8 {0.504}
C	No.4 engine mounting bracket installation bolt	M10 {0.39}
D	No.4 engine mounting bracket installation bolt	M10 {0.39}
E	Front side frame datum hole	φ7 {0.3}
F	Front side frame datum hole	φ10 {0.39}
G	Front bumper stay datum s	12×18 {0.47×0.71}
H	Front fender stay installation hole	φ7 {0.3}
I	Shroud side panel datum slot	RH:9×10 {0.36×0.39} LH:φ7 {0.3}
J	Front bumper reinforcement installation hole	φ12 {0.47}
K	Front bumper reinforcement installation hole	φ12 {0.47}

R.H.D.

Vehicle identification number

•  JMZ BL12F60#, JMZ BL12F70#, JMZ BL12Y20#, JMZ BL12Z20#, JMZ BL12Z50#, JMZ BL14F60#, JMZ BL14F70#, JMZ BL14Y20#, JMZ BL14Z20#, JMZ BL14Z50#, JMZ BLA2A60#, JMZ BLA2C60#, JMZ BLA2F70#, JMZ BLA2G60#, JMZ BLA2Y60#, JMZ BLA2Z20#, JMZ BLA2Z50#, JMZ BLA4360#, JMZ BLA4A60#, JMZ BLA4C60#, JMZ BLA4F70#, JMZ BLA4G60#, JMZ BLA4Y60#, JMZ BLA4Z20#, JMZ BLA4Z50#, JM0 BL103100, JM0 BL10C100, JM0 BL10F100, JM0 BL10L100, JM6 BL1051*0, JM6 BL10F1*0, JM6 BL10G1*0, JM6 BL10L1*0, JM6 BL10Z1*0

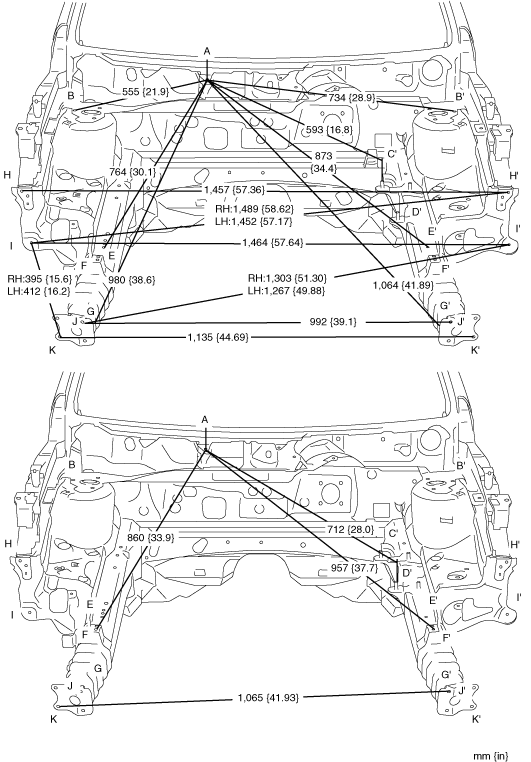

am3zzb00000330

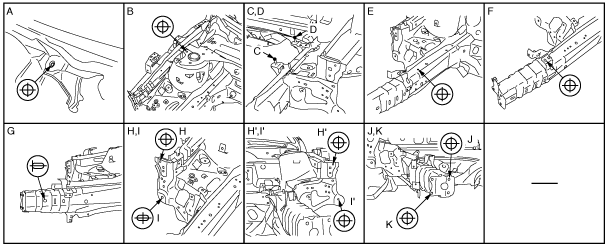

am3zzb00000072

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front wiper motor and link installation hole	φ7 {0.3}
B	Front suspension upper mounting installation hole	φ12.8 {0.504}
C	No.4 engine mounting bracket installation bolt	M10 {0.39}
D	No.4 engine mounting bracket installation bolt	M10 {0.39}
E	Front side frame datum hole	φ7 {0.3}
F	Front side frame datum hole	φ10 {0.39}
G	Front bumper stay datum s	12×18 {0.47×0.71}
H	Front fender stay installation hole	φ7 {0.3}
I	Shroud side panel datum slot	RH:9×10 {0.36×0.39} LH:φ7 {0.3}
J	Front bumper reinforcement installation hole	φ12 {0.47}
K	Front bumper reinforcement installation hole	φ12 {0.47}
