ROOM DIMENSIONS (1) [DIMENSIONS]

id098010990500

am3uub00000058

am3uub00000059

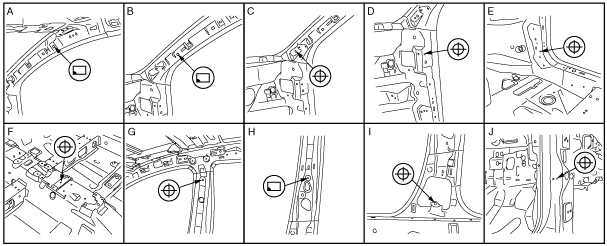

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

A-pillar trim installation square hole

11 ×13

{0.43×0.51}

B

A-pillar trim installation square hole

9 ×15

{0.4×0.59}

C

Front pillar (inner) datum hole

φ12 {0.47}

D

Dashboard installation hole

φ10 {0.39}

E

Hinge pillar (inner) datum hole

φ7 {0.3}

F

No.3 mounting bracket datum hole

φ7 {0.3}

G

Adjust anchor installation hole

φ12 {0.47}

H

B-pillar (inner) datum square hole

7 ×7

{0.3×0.3}

I

Front seat belt retractor installation hole

φ13 {0.51}

J

Front door checker installation hole

φ4 {0.2}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	A-pillar trim installation square hole	11 ×13 {0.43×0.51}
B	A-pillar trim installation square hole	9 ×15 {0.4×0.59}
C	Front pillar (inner) datum hole	φ12 {0.47}
D	Dashboard installation hole	φ10 {0.39}
E	Hinge pillar (inner) datum hole	φ7 {0.3}
F	No.3 mounting bracket datum hole	φ7 {0.3}
G	Adjust anchor installation hole	φ12 {0.47}
H	B-pillar (inner) datum square hole	7 ×7 {0.3×0.3}
I	Front seat belt retractor installation hole	φ13 {0.51}
J	Front door checker installation hole	φ4 {0.2}
