ROOM DIMENSIONS (3) [DIMENSIONS]
id098010990700
4SD
am3uub00000064
|

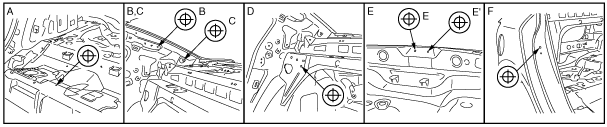

am3uub00000065
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Rear floor panel datum hole
|
φ6 {0.2}
|
|
B
|
C-pillar trim installation hole
|
φ8.6 {0.34}
|
|
C
|
C-pillar trim installation hole
|
φ7 {0.3}
|
|
D
|
Rear seat striker installation hole
|
φ13 {0.51}
|
|
E
|
Trunk lid striker installation hole
|
φ12 {0.47}
|
|
F
|
Rear door striker installation hole
|
φ13 {0.51}
|
5HB

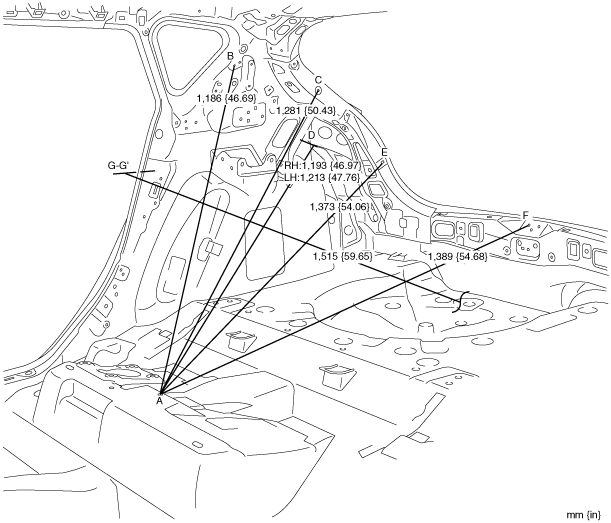

am3uub00000022
|

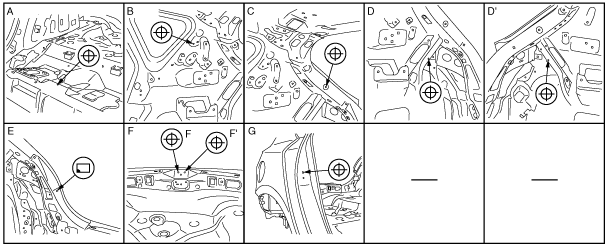

am3uub00000023
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Rear floor panel datum hole
|
φ6 {0.2}
|
|
B
|
C-pillar trim installation hole
|
φ7 {0.3}
|
|
C
|
C-pillar trim installation hole
|
φ8.6 {0.34}
|
|
D
|
Trunk side trim installation hole
|
φ7 {0.3}
|
|
E
|
Trunk side trim installation slot
|
7.2×12
{0.28×0.47}
|
|
F
|
Liftgate striker installation hole
|
φ14 {0.55}
|
|
G
|
Rear door striker installation hole
|
φ13 {0.51}
|
