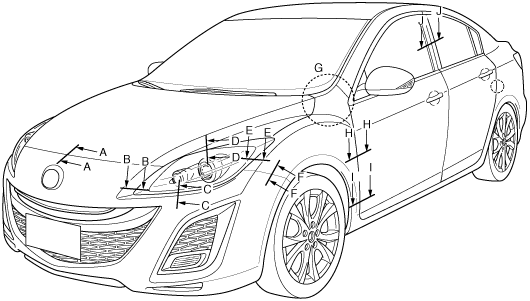

aaxjjb00000132
CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]
id0980c0740300
4SD
Front View
aaxjjb00000132
|
am3uub00000277
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Side by difference (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
2.0
{0.079}
|
3.84
{0.151}
|
0.24
{0.094}
|
-
|
|
2
|
4.5
{0.18}
|
6.0
{0.24}
|
3.0
{0.12}
|
2.0
{0.079}
|
|
|
B
|
3
|
2.43
{0.0957}
|
4.93
{0.194}
|
-0.07
{-0.003}
|
2.0
{0.079}
|
|
C
|
4
|
1.5
{0.059}
|
3.0
{0.12}
|
0
|
1.4
{0.055}
|
|
D
|
5
|
3.5
{0.14}
|
5.1
{0.20}
|
1.9
{0.075}
|
2.5
{0.098}
|
|
6
|
-1.0
{-0.039}
|
0.8
{0.03}
|
-2.8
{-0.11}
|
-
|
|
|
E
|
7
|
1.5
{0.059}
|
2.9
{0.11}
|
0.1
{0.004}
|
2.0
{0.079}
|
|
8
|
2.0
{0.079}
|
3.5
{0.14}
|
0.5
{0.02}
|
-
|
|
|
F
|
9
|
0.5
{0.02}
|
1.8
{0.071}
|
-
|
-
|
|
10
|
0.5
{0.02}
|
1.2
{0.047}
|
0.2
{0.008}
|
-
|
|
|
G
|
11
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
12
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
13
|
0
|
1.5
{0.059}
|
-1.5
{-0.059}
|
-
|
|
|
H
|
14
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
15
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
I
|
16
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
17
|
1.2
{0.047}
|
2.2
{0.087}
|
0.2
{0.008}
|
-
|
|
|
J
|
18
|
4.5
{0.18}
|
6.0
{0.24}
|
3.0
{0.12}
|
1.5
{0.059}
|
|
19
|
0
|
1.5
{0.059}
|
-1.5
{-0.059}
|
-
|
Rear view

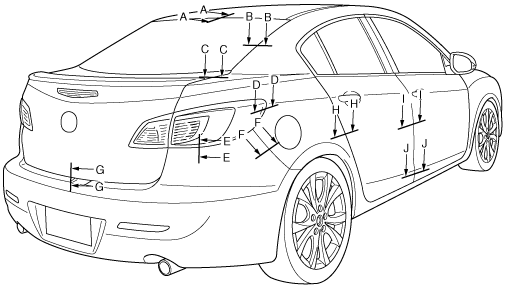

aaxjjb00000135
|

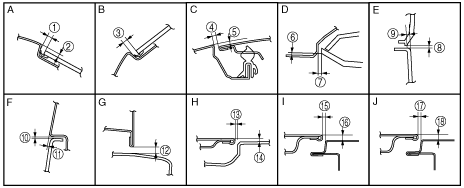

am3uub00000278
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Side by difference (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
5.2
{0.20}
|
6.9
{0.27}
|
3.5
{0.14}
|
-
|
|
2
|
2.0
{0.079}
|
3.8
{0.15}
|
0.2
{0.008}
|
-
|
|
|
B
|
3
|
4.0
{0.16}
|
6.2
{0.24}
|
1.8
{0.071}
|
-
|
|
C
|
4
|
3.6
{0.14}
|
4.6
{0.18}
|
2.6
{0.10}
|
1.0
{0.039}
|
|
5
|
-0.8
{-0.03}
|
0.2
{0.008}
|
-1.8
{-0.071}
|
-
|
|
|
D
|
6
|
1.5
{0.059}
|
3.0
{0.12}
|
0
|
-
|
|
7
|
1.3
{0.051}
|
2.5
{0.098}
|
0.1
{0.004}
|
-
|
|
|
E
|
8
|
1.5
{0.059}
|
3.0
{0.12}
|
0
|
-
|
|
9
|
3.2
{0.13}
|
4.7
{0.19}
|
1.7
{0.067}
|
-
|
|
|
F
|
10
|
0.5
{0.02}
|
1.8
{0.071}
|
-
|
-
|
|
11
|
0.5
{0.02}
|
1.2
{0.047}
|
-0.2
{-0.008}
|
-
|
|
|
G
|
12
|
6.0
{0.24}
|
8.0
{0.31}
|
4.0
{0.16}
|
2.0
{0.079}
|
|
H
|
13
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
14
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
I
|
15
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
16
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
J
|
17
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
18
|
0.5
{0.02}
|
1.5
{0.059}
|
-0.5
{-0.02}
|
-
|
5HB
Front view
aaxjjb00000134
|
am3uub00000277
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Side by difference (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
2.0
{0.079}
|
3.84
{0.151}
|
0.24
{0.094}
|
-
|
|
2
|
4.5
{0.18}
|
6.0
{0.24}
|
3.0
{0.12}
|
2.0
{0.079}
|
|
|
B
|
3
|
2.43
{0.0957}
|
4.93
{0.194}
|
-0.07
{-0.003}
|
2.0
{0.079}
|
|
C
|
4
|
1.5
{0.059}
|
3.0
{0.12}
|
0
|
1.4
{0.055}
|
|
D
|
5
|
3.5
{0.14}
|
5.1
{0.20}
|
1.9
{0.075}
|
2.5
{0.098}
|
|
6
|
-1.0
{-0.039}
|
0.8
{0.03}
|
-2.8
{-0.11}
|
-
|
|
|
E
|
7
|
1.5
{0.059}
|
2.9
{0.11}
|
0.1
{0.004}
|
2.0
{0.079}
|
|
8
|
2.0
{0.079}
|
3.5
{0.14}
|
0.5
{0.02}
|
-
|
|
|
F
|
9
|
0.5
{0.02}
|
1.8
{0.071}
|
-
|
-
|
|
10
|
0.5
{0.02}
|
1.2
{0.047}
|
0.2
{0.008}
|
-
|
|
|
G
|
11
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
12
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
13
|
0
|
1.5
{0.059}
|
-1.5
{-0.059}
|
-
|
|
|
H
|
14
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
15
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
I
|
16
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
17
|
1.2
{0.047}
|
2.2
{0.087}
|
0.2
{0.008}
|
-
|
|
|
J
|
18
|
4.5
{0.18}
|
6.0
{0.24}
|
3.0
{0.12}
|
1.5
{0.059}
|
|
19
|
0
|
1.5
{0.059}
|
-1.5
{-0.059}
|
-
|
Rear view

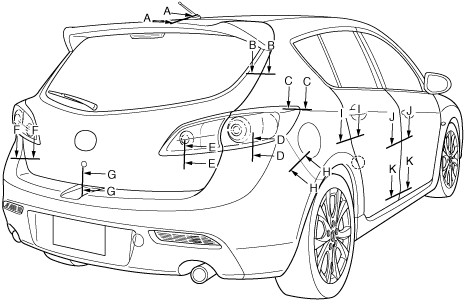

aaxjjb00000137
|

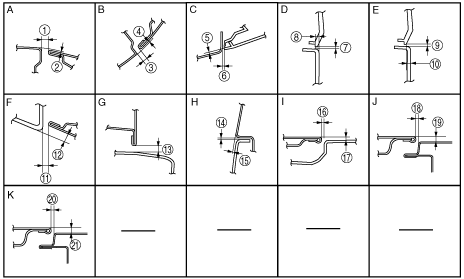

am3uub00000279
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Side by difference (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
6.0
{0.24}
|
7.0
{0.28}
|
5.0
{0.20}
|
1.2
{0.047}
|
|
2
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
B
|
3
|
4.9
{0.19}
|
6.4
{0.25}
|
3.4
{0.13}
|
1.2
{0.047}
|
|
4
|
0.2
{0.008}
|
1.7
{0.067}
|
-1.3
{-0.051}
|
-
|
|
|
C
|
5
|
0.2
{0.008}
|
1.7
{0.067}
|
-1.3
{0.051}
|
-
|
|
6
|
1.3
{0.051}
|
2.5
{0.098}
|
0.1
{0.004}
|
-
|
|
|
D
|
7
|
1.5
{0.059}
|
3.0
{0.12}
|
0
|
-
|
|
8
|
1.0
{0.02}
|
2.5
{0.098}
|
-0.5
{-0.02}
|
-
|
|
|
E
|
9
|
1.5
{0.059}
|
2.7
{0.11}
|
0.3
{0.01}
|
-
|
|
10
|
1.0
{0.039}
|
2.0
{0.079}
|
0
|
-
|
|
|
F
|
11
|
4.5
{0.18}
|
6.5
{0.26}
|
2.5
{0.098}
|
2.0
{0.079}
|
|
12
|
1.09
{0.0429}
|
3.09
{0.122}
|
-0.91
{-0.036}
|
-
|
|
|
G
|
13
|
6.0
{0.24}
|
8.0
{0.31}
|
4.0
{0.16}
|
2.0
{0.079}
|
|
H
|
14
|
0.5
{0.02}
|
1.8
{0.071}
|
-
|
-
|
|
15
|
0.5
{0.02}
|
1.2
{0.047}
|
-0.2
{-0.008}
|
-
|
|
|
I
|
13
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
14
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
J
|
15
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
16
|
0
|
1.0
{0.039}
|
-1.0
{-0.039}
|
-
|
|
|
K
|
17
|
3.5
{0.14}
|
4.5
{0.18}
|
2.5
{0.098}
|
1.0
{0.039}
|
|
18
|
0.5
{0.02}
|
1.5
{0.059}
|
-0.5
{-0.02}
|
-
|
