CONNECTING ROD INSPECTION [WITH DIESEL PARTICULATE FILTER]

id0110f3502800

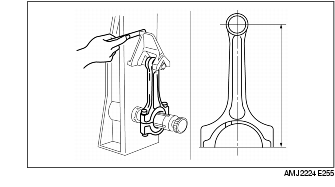

• Measure bending and distortion for each connecting rod. Replace the connecting rod if necessary.

Bending

0.080 mm {0.0031 in} max. /50 mm {2.0 in}

Distortion

0.080 mm {0.0031 in} max. /50 mm {2.0 in}

Center-to-center distance

151.95-152.05 mm {5.983-5.986 in}
