PILOT BEARING INSPECTION [WITH DIESEL PARTICULATE FILTER]

id0110f3505200

• Verify that the pilot bearing rotates smoothly without any abnormal noise. Replace if necessary.

Replacement

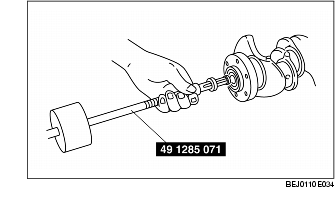

1. Remove the pilot bearing from the crankshaft using the SST.

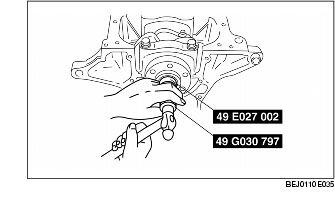

2. Install the pilot bearing using the SST.
