CYLINDER HEAD DISASSEMBLY (II)
id011000500500

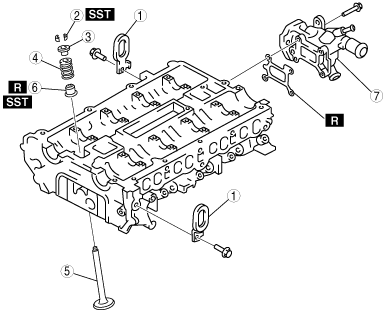

1. Disassemble in the order indicated in the table.
e6u110zeb014
|
|
1
|
Engine hanger
|
|
2
|
Valve keeper
|
|
3
|
Upper valve spring seat
|
|
4
|
Valve spring
|
|
5
|
Valve
|
|
6
|
Valve seal
(See Valve Seal Disassembly Note.)
|
|
7
|
Water outlet case
|
Valve Keeper Disassembly Note
1. Remove the valve keeper using the SSTs.
b3e0110e124
|
Valve Seal Disassembly Note
1. Remove the valve seal using the SST.
b3e0110e061
|
