VALVE SPRING INSPECTION

id011000501400

1. Measure the valve spring height using the spring tester.

• If it is not within the specification, replace the valve spring.

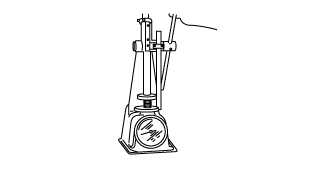

adj2224e028

Valve spring installation height

37.90 mm {1.492 in} (171.5 N {17.49 kgf, 38.55 lbf})

2. Measure the amount of off-square on the valve spring using a square.

(1) Rotate the valve spring one full turn and measure A at the point where the gap is the largest.

• If it exceeds the maximum specification, replace the valve spring.

beltze00000017

Maximum valve spring off-square

3.17 mm {0.124 in}
