CYLINDER HEAD INSPECTION

id011000507100

1. Inspect the cylinder head surface for cracks and other damage using a red dye penetrant.

• If there is a malfunction, replace the cylinder head.

2. Measure the combustion chamber side of the cylinder head for distortion in six directions as shown in the figure using a straight edge and feeler gauge.

• If the distortion exceeds the maximum specification, replace the cylinder head. Do not attempt to repair the cylinder head by milling or grinding.

beltze00000085

Maximum distortion, head gasket side

0.10 mm {0.004 in}

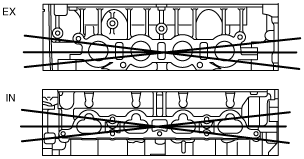

3. Inspect the contact surface of the exhaust manifold and the intake manifold for distortion by measuring as shown in the figure using a straight edge and feeler gauge.

• If the distortion exceeds the maximum specification, grind the surface or replace the cylinder head.

beltze00000086

Maximum distortion, manifold side

0.10 mm {0.004 in}

Maximum cutting length, manifold side

0.15 mm {0.006 in}
