OIL PUMP OUTLINE

id051700105600

• The light-weight, compact, and quiet trochoid gear type oil pump is adopted to reduce the pump driving torque.

• The direct drive type oil pump is adopted and placed behind the torque converter.

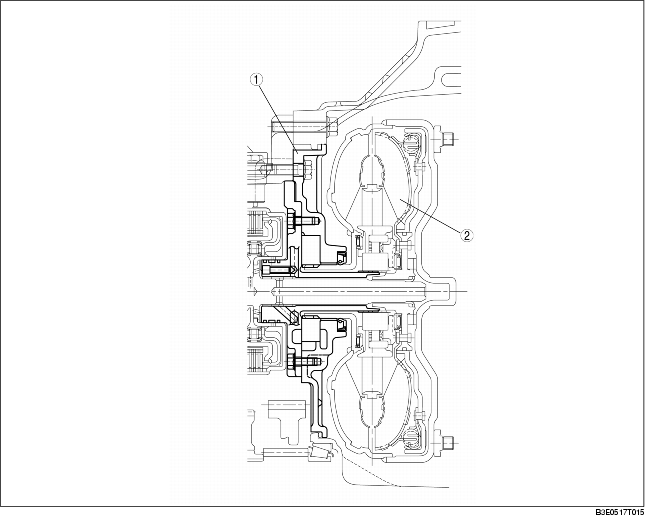

1	Oil pump
2	Torque converter
