AUTOMATIC TRANSAXLE ASSEMBLY

id051700502200


Precaution


General notes

1.  Select the adjustment shims, referring to Bearing Preload.

2.  If the drive plates or 2-4 brake band are replaced with new ones, soak the new part in ATF for at least two hours before installation.

3.  Before assembly, apply ATF to all seal rings, rotating parts, O-rings, and sliding parts.

4.  All O-rings, seals, and gaskets must be replaced with the new ones included in the overhaul kit.

5.  Use petroleum jelly, not grease, when assembling again.

6.  When it is necessary to replace a bushing, replace the subassembly that includes that bushing.

7.  Assemble the housing within 10 minutes after applying sealant, and allow it to cure for at least 30 minutes after assembly before filling the transaxle with ATF.

Warning
•  Although the stand has a self-locking brake system, there is a possibility that the brake may not hold when the transaxle is held in a lopsided position on the stand. This would cause the transaxle to turn suddenly, causing serious injury. Never keep the transaxle tilted to one side. Always hold the rotating handle firmly when turning the transaxle.


Assembly

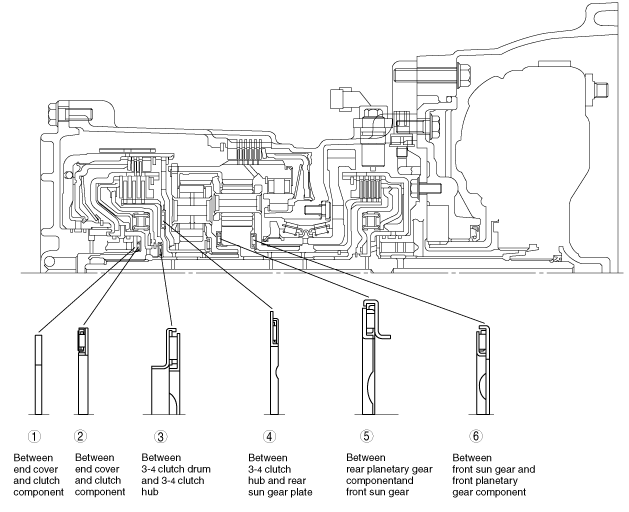

Bearing and race locations

baf4za00000045
Note
•  The bearing and race at locations 2, 3, 4, 5, and 6 are one-piece units.

Outer diameter of bearing and race



1

2

3

4

5

6
Bearing (mm {in})
—
40.0 {1.57}
39.0 {1.54}
78.2 {3.08}
52.0 {2.05}
50.0 {1.97}
Race (mm {in})
40.2 {1.58}
—
—
—
—
—


Components

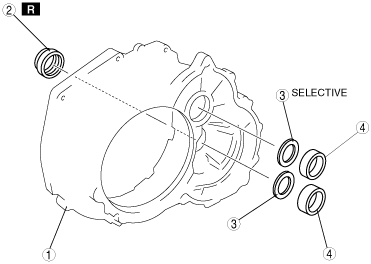

baf4za00000046

1
Converter housing
2
Oil seal
3
Adjustment shim
4
Bearing race

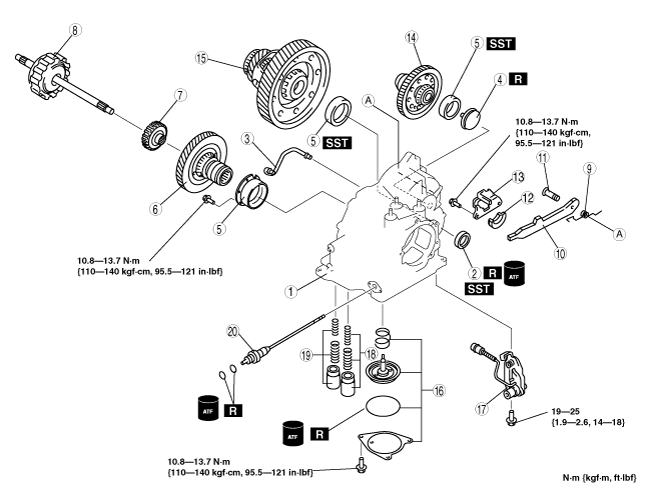

baf4za00000047

1
Transaxle case
2
Oil seal
3
Oil pipe
4
Funnel
5
Bearing race
6
Primary gear
7
Forward clutch hub
8
Forward clutch
9
Pawl return spring
10
Parking pawl
11
Parking pawl shaft
12
Support actuator
13
Actuator plate
14
Secondary gear and output gear
15
Differential
16
Band servo
17
Parking rod lever component
18
Forward accumulator
19
Servo apply accumulator
20
Manual shaft

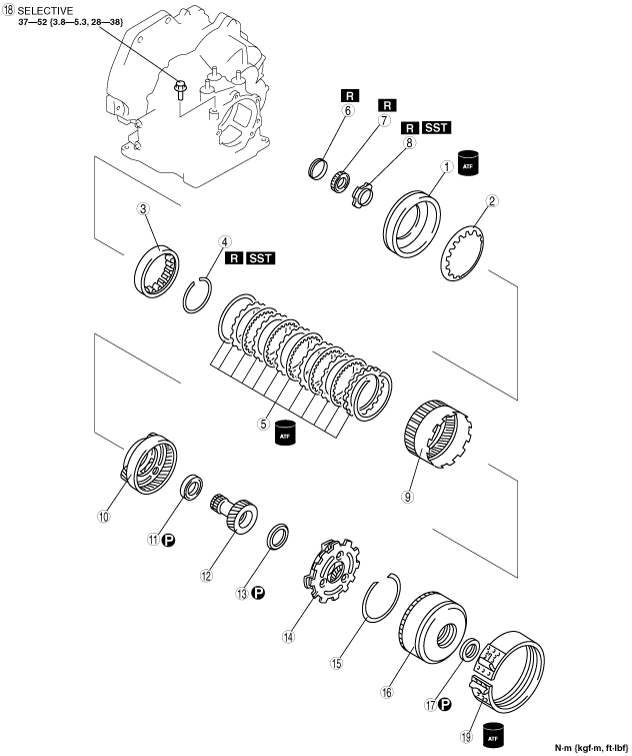

baf4za00000048

1
Low and reverse brake piston
2
Low and reverse brake return spring
3
One-way clutch inner race
4
Snap ring
5
Low and reverse brake
6
Distance piece
7
Bearing
8
Locknut
9
Front internal gear and one-way clutch
10
Front planetary gear component
11
Needle bearing
12
Front sun gear
13
Needle bearing
14
Rear planetary gear component
15
Snap ring
16
Clutch component
17
Needle bearing
18
Band strut
19
2–4 brake band

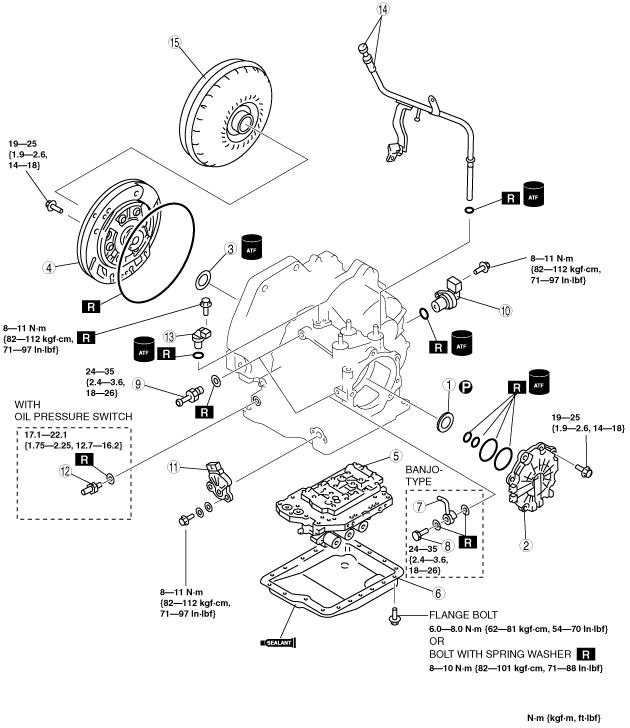

baf4za00000138

1
Needle bearing
2
End cover
3
Thrust washer
4
Oil pump
5
Control valve body
6
Oil pan
7
Oil pipe
8
Connector bolt
9
Connector pipe
10
Vehicle speed sensor
11
Transaxle range switch
12
Oil pressure switch
13
Input/turbine speed sensor
14
Oil dipstick and oil filler tube
15
Torque converter


Assembly procedure

1.  Measure the bushing of the front sun gear.

baf4za00000050

Bushing inner diameter
Standard: 18.000—18.018 mm
{0.70866—0.70936 in}
Maximum: 18.038 mm {0.71016 in}

2.  If not as specified, replace the front sun gear.

3.  Measure the bushing of the end cover.

baf4za00000051

Bushing inner diameter
Standard: 23.600—23.621 mm
{0.92913—0.92995 in}
Maximum: 23.641 mm {0.93075 in}

4.  If not as specified, replace the end cover.

5.  Assemble the SST.

baf4za00000052

6.  Lift the transaxle case and mount it on the SST.

baf4za00000053

7.  Install the oil pipe.

8.  Install a new funnel and bearing race.

baf4za00000054

9.  Install the bearing race, then tighten torx screws.

baf4za00000055

Tightening torque
10.8—13.7 N·m
{110—140 kgf·cm, 95.5—121 in·lbf}

10.  Install the bearing race to the transaxle case.

baf4za00000056

11.  Install the locknut.

(1)  Set the primary gear.
baf4za00000057
(2)  Set the distance piece and bearing.
baf4za00000058
(3)  Loosely tighten the locknut.
baf4za00000059
(4)  Set the SSTs in the order shown.
baf4za00000060
baf4za00000061
(5)  Tighten the locknut from the end cover side to adjust the preload within the specification.
baf4za00000062
Preload
0.50—0.90 N·m
{5.10—9.17 kgf·cm, 4.42—7.96 in·lbf}
(6)  Stake the locknut.
baf4za00000063
(7)  Remove the SST

12.  Install the front internal gear and one-way clutch.

baf4za00000064

13.  Apply petroleum jelly to the bearing, and secure it to the front planetary gear component.

14.  Install the front planetary gear component.

baf4za00000065

15.  Apply petroleum jelly to the bearing, and secure it to the front sun gear.

16.  Install the front sun gear.

baf4za00000066

17.  Install the rear planetary gear.

baf4za00000067

Note
•  Rotate the engine stand so that the oil pan faces downward. Pull the front internal gear and one-way clutch component a little until the groove for the snap ring appears, then install the snap ring.
baf4za00000068

18.  Install the snap ring.

baf4za00000069

19.  Rotate the engine stand so that the end cover faces upward, and verify that the snap ring is installed accurately.

20.  Install the band servo component.

(1)  Install the servo return spring and servo piston.
(2)  Apply ATF to the O-ring, and install it to the transaxle case.
(3)  Install the servo retainer.
baf4za00000070
Tightening torque
10.8—13.7 N·m
{110—140 kgf·cm, 95.5—121 in·lbf}

21.  Install the 2-4 brake band.

baf4za00000071

22.  Apply petroleum jelly to the bearing, and secure it to the clutch component.

23.  Install the clutch component.

baf4za00000072

24.  Select the band strut.

(1)  Find an appropriate bolt (under head length: 60—70 mm {2.36—2.75 in}), and tighten the 2-4 brake band with the bolt.
Tightening torque
4.9 N·m {50 kgf·cm, 43 in·lbf}
(2)  Measure the dimension A shown in the figure.
baf4za00000073
(3)  Remove the bolt.
(4)  Measure the dimension B shown in the figure.
baf4za00000074
(5)  Calculate according to the formula below.
B – A = C (The middle of the under head length)
C – 4 = D (The lower limit of under head length)
C – 4.7 = E (The upper limit of under head length)
(6)  Select a band strut whose length should be between D and E.

Band strut length

mm {in}

36.0 {1.417}
36.25 {1.427}
36.5 {1.437}
36.75 {1.447}
37.0 {1.457}
37.25 {1.467}
37.5 {1.476}
37.75 {1.486}
38.0 {1.496}
38.25 {1.506}
–
–

(7)  Install the selected band strut.
baf4za00000075
Tightening torque
37—52 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}

25.  Use the following procedure to adjust the total end play.

(1)  Install the thickest bearing race (2.6 mm {0.102 in}) to the end cover.
(2)  Install the end cover to the clutch component.
(3)  Apply pressure of 93—103 N {9.5—10.5 kgf, 21.0—23.1 lbf} to the end cover by placing a weight.
(4)  Measure the clearance between the transaxle case and the end cover at the four locations (each 90 degrees), and measure clearance A with all the measured values being the same.
baf4za00000076
(5)  Calculate according to the formulas below. Select an appropriate bearing race whose bearing thickness matches the calculated limits.
A – 2.6 mm {0.102} (Bearing thickness) = B
B – 0.25 = C (The lower limit of bearing thickness)
B – 0.50 = D (The upper limit of bearing thickness)
(6)  Select a bearing race whose thickness is between D mm {in} and C mm {in}.

Bearing race sizes

mm {in}

1.8 {0.071}
2.0 {0.079}
2.2 {0.087}
2.4 {0.094}
2.6 {0.102}
–

(7)  Remove the end cover, apply petroleum jelly to the bearing race selected in Step (6), and then install it to the end cover. However, if the A-type bearing race is used, position the bearing race end within the range of the arrow shown in the figure of the end cover.

A-type

baf4za00000077

B-type

baf4za00000114

26.  Apply ATF to new seal ring, and install it to the end cover.

baf4za00000078

Seal ring inner diameter
A: 47.1 mm {1.854 in}
B: 55.8 mm {2.197 in}
Caution
•  Apply an appropriate amount of silicone sealant to the indicated part. If sealant is applied excessively or applied to a part other than the indicated part, the O-ring could deform and the sealant could penetrate the oil passage.

27.  Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the transaxle case and the end cover.

baf4za00000079

28.  Apply ATF to the O-ring and install it to the transaxle case.

29.  Install the end cover to the transaxle case.

baf4za00000080

Tightening torque
19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

30.  Install the pawl return spring to the transaxle case.

baf4za00000081

31.  Install the packing pawl and parking pawl shaft to the transaxle case.

baf4za00000082

32.  Install the pawl return spring to the parking pawl and parking pawl shaft.

baf4za00000083

33.  Install the support plate to the transaxle case.

baf4za00000084

34.  Install the actuator plate to the transaxle case.

baf4za00000085

Tightening torque
10.8—13.7 N·m
{110—140 kgf·cm, 95.5—121 in·lbf}

35.  Install the secondary gear and output gear.

36.  Install the differential.

baf4za00000086

37.  Install the forward clutch component.

baf4za00000087

38.  Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the converter housing and the transaxle case.

baf4za00000088

39.  Install the converter housing.

baf4za00000089

Tightening torque
19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

40.  Install the SST into the differential side gears.

baf4za00000090

41.  Apply ATF to the new O-ring and install it to the oil pump.

42.  Install the oil pump.

baf4za00000091

Tightening torque
19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

43.  Install the parking rod lever component.

baf4za00000092

Tightening torque
19—25 N·m {1.9—2.6 kgf·m, 14—18 ft·lbf}

44.  Apply ATF to the new O-ring and install it to the manual shaft.

45.  Install the manual shaft.

(1)  Install the manual shaft to the manual plate and detent bracket component.
baf4za00000093
(2)  Install the knock pin.
baf4za00000094

46.  Install the accumulator component.

baf4za00000095

47.  Install the coupler component.

baf4za00000096

Caution
•  Make sure that the head of the manual valve and the parking rod are assembled properly. If they are not, the ranges cannot be changed.
baf4za00000097

48.  Install the control valve body.

baf4za00000098

Tightening torque
7.8—10.8 N·m
{80—110 kgf·cm, 69—95.5 in·lbf}
Bolt length (measured from below the head)
B: 40 mm {1.575 in}
No mark: 70 mm {2.756 in}

49.  Apply ATF to the new O-ring and install it to the oil strainer.

50.  Install the oil strainer.

baf4za00000099

51.  Match the harness colors, then connect the solenoid connector and transaxle fluid temperature sensor.

Solenoid valve

Color of connector (harness side)
Pressure control solenoid
Black
Shift solenoid A
White
Shift solenoid B
Blue
Shift solenoid C
Green
Shift solenoid D
White
Shift solenoid E
Black

52.  Install the ground.

baf4za00000100

Tightening torque
7.8—10.8 N·m
{80—110 kgf·cm, 69—95.5 in·lbf}
Warning
•  Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
Caution
•  Clean the transaxle exterior thoroughly with a steam cleaner or cleaning solvents before removal.
•  If any old sealant gets into the transaxle during installation of the oil pan, trouble may occur in the transaxle case and oil pan, and clean with cleaning fluids.

53.  Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of oil pan and transaxle case.

baf4za00000101

54.  Install the oil pan before the applied sealant starts to harden.

Caution
•  The removed bolts with spring washer cannot be reused. If they are reused, it could loosen the bolts due to spring weakness.
Tightening torque
Flange bolt: 6.0—8.0 N·m {62—81 kgf·cm, 54—70 in·lbf}
Bolt with spring washer: 8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}

55.  Install the oil pipe and connector bolt.

Tightening torque
24—35 N·m
{2.4—3.6 kgf·cm, 18—26 in·lbf}

56.  Install the connector pipe.

Tightening torque
24—35 N·m
{2.4—3.6 kgf·cm, 18—26 in·lbf}

57.  Apply ATF to the new O-ring and install it to the vehicle speed sensor.

58.  Install the vehicle speed sensor.

Tightening torque
8—11 N·m
{82—112 kgf·cm, 71—97 in·lbf}

59.  Apply ATF to the new O-ring and install it to the input/turbine speed sensor.

60.  Install the oil pressure switch.

Tightening torque
17.1—22.1 N·m
{1.75—2.25 kgf·m, 12.7—16.2 ft·lbf}

61.  Install the input/turbine speed sensor using a new bolt.

Caution
•  Always use a new bolt. If the removed bolt is reused, it may cause oil leakage.
•  A sealant coating is applied to the input/turbine speed sensor installation bolt to prevent oil leakage from the installation bolt hole which passes through the component.
Tightening torque
8—11 N·m
{82—112 kgf·cm, 71—97 in·lbf}

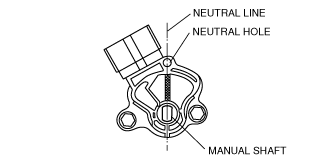

62.  Install the transaxle range switch. (6-terminal connector type)

(1)  Rotate the manual shaft to the N position.
baf4za00000102

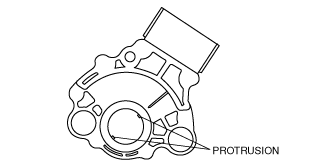

(2)  Turn the protrusion a resistance between the terminals B and C become 750 ohms.
baf4za00000103
baf4za00000104
(3)  Install the TR switch while aligning the protrusion and groove as shown.
baf4za00000105
(4)  hand- tighten the TR switch mounting bolts.
(5)  Inspect the resistance between the terminals B and C.
baf4za00000104
•  If not as specified, readjust the TR switch.
Resistance
750 ohms
(6)  Tighten the TR switch mounting bolts
Tightening torque
8—11 N·m
{82—112 kgf·cm, 71—97 in·lbf}
Caution
•  Do not use an impact wrench. Hold the manual shaft lever when removing the manual shaft nut, or the transaxle may be damaged.
(7)  Install the manual shaft lever and the washer.
baf4za00000106
(8)  Set the adjustable wrench as shown to hold the manual shaft lever, and tighten the manual shaft nut.
baf4za00000107
Tightening torque
32—46 N·m
{3.2—4.7 kgf·m, 24—33 ft·lbf}

63.  Install the transaxle range switch. (9-terminal connector type)

(1)  Rotate the manual shaft to the N position.
baf4za00000108
(2)  Align the protrusion to establish the continuity between the terminals A and H.
baf4za00000109
baf4za00000110
(3)  Install the TR switch while aligning the protrusion and groove as shown in the figure.
baf4za00000105
(4)  Turn the TR switch so that the neutral hole is in line with flat, straight surfaces on either side of the manual shaft.
baf4za00000111
(5)  hand- tighten the TR switch mounting bolts.
(6)  Verify that the continuity between the terminals A and H.
baf4za00000110
(7)  Tighten the TR switch mounting bolts.
Tightening torque
8—11 N·m
{82—112 kgf·cm, 71—97 in·lbf}
Caution
•  Do not use an impact wrench. Hold the manual shaft lever when removing the manual shaft nut, or the transaxle may be damaged.
(8)  Install the manual shaft lever and the washer.
baf4za00000106
(9)  Set the adjustable wrench as shown to hold the manual shaft lever, and tighten the manual shaft nut.
baf4za00000107
Tightening torque
32—46 N·m
{3.2—4.7 kgf·m, 24—33 ft·lbf}

64.  Remove the transaxle from the SST.

65.  Apply ATF to the new O-ring and install it to the oil filler tube.

66.  Install the oil dipstick and oil filler tube to the transaxle.

Tightening torque
7.8—10.8 N·m
{80—110 kgf·cm, 69—95.5 in·lbf}

67.  Drain any ATF remaining in the torque converter.

68.  Pour in solvent (approx. 0.5 L {0.53 US qt, 0.44 lmp qt}),

69.  Shake the torque converter to clean the inside.

70.  Pour out the solvent.

71.  Pour the ATF.

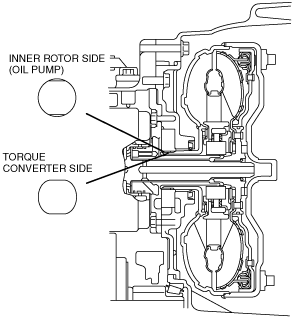

72.  Install the torque converter by aligning its gap to the oil pump inner rotor gap as shown in the figure.

baf4za00000112

73.  To ensure that the torque converter is installed accurately, measure distance A between the end of the torque converter and the end of the converter housing.

baf4za00000113

Distance A
Mazda2:
15.4 mm {0.60 in}
Mazda3, Mazda5:
31.4 mm {1.24 in}
Mazda6:
21.4 mm {0.84 in}
MPV, Mazda8:
17.9 mm {0.70 in}
