PRIMARY SHAFT COMPONENTS INSPECTION
D6E051517040102

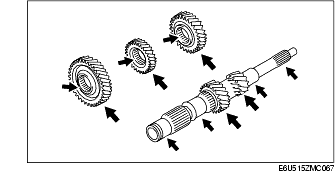

Primary Shaft and Gear Inspection
1. Inspect the shaft for damage, abnormal wear, dents, flaking, or bending.
-
• If there is any malfunction, replace the shaft.
2. Inspect the gears for damage, abnormal wear, dents, flaking, or bending.
-
• If there is any malfunction, replace the gear.
Bearing Inspection
1. Verify that the bearing to rotates smoothly.
-
• If there is any malfunction, replace the bearing.
