POWER FLOW OPERATION

D6E051700000A12

Component description

Component

Function

Forward clutch
• Transmits the input torque from the turbine shaft to the front sun gear.
• Operates in the forward range of the first, second, or third gear position.
3-4 clutch
• Transmits the input torque from the turbine shaft to the rear planetary carrier.
• Operates in the forward range of the third, fourth or fifth gear position.
Reverse clutch
• Transmits the input torque from the turbine shaft to the rear sun gear.
• Operates when the vehicle is backing up.
Direct clutch
• Engage the secondary planetary carrier and the secondary sun gear.
• Operates in the fifth gear position.
2-4 brake band
• Locks rotation of the reverse drum and fixes the rear sun gear.
• Operates in the second or fourth gear position.
Low and reverse brake
• Fixes the rotation of the front internal gear.
• Operates when the vehicle is backing up or in the first gear position (M range 1GR).
Reduction brake
• Fixes the rotation of the secondary sun gear.
• Operates when the vehicle is backing up.
• Operates in the first, second, third or fourth gear position.
One-way clutch No.1
• Locks the counterclockwise rotation of the front internal gear in the first gear position.
One-way clutch No.2
• Operates in the first, second, third or fourth gear position.
Front planetary gear
• The front planetary gear and rear planetary gear functions as a transmission due to the engagement/ disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the primary gear.
Rear planetary gear
Secondary planetary gear
• The secondary planetary gear functions as a transmission due to the engagement/ disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.

Note
• All directions of rotation are viewed from the torque converter.

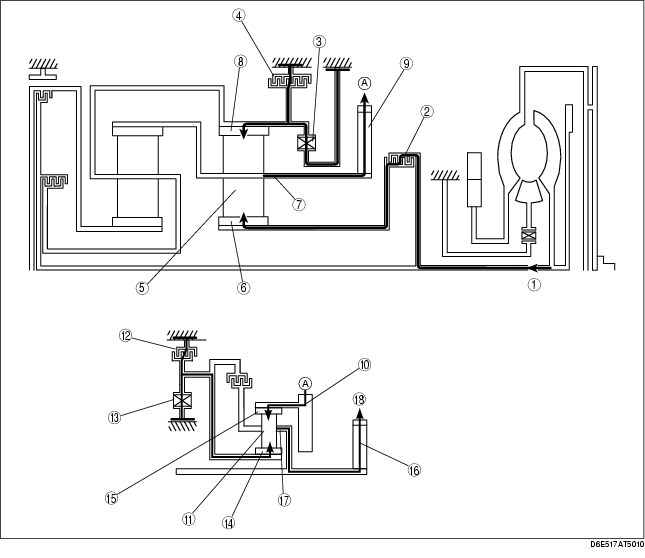

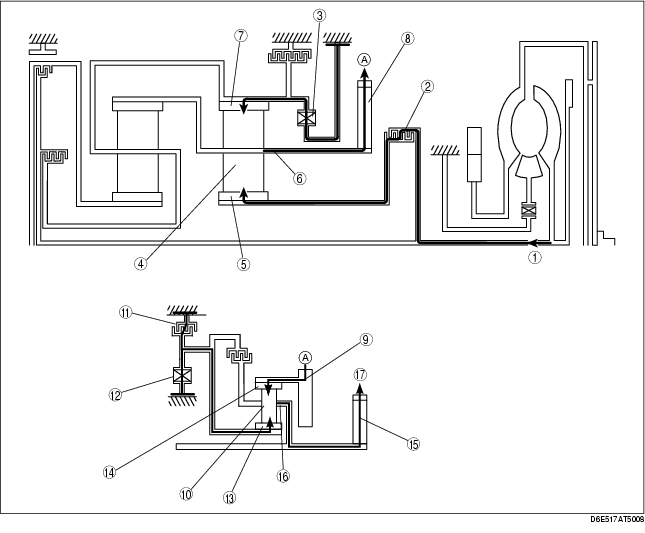

1GR (D range)

.

1
Input
2
Forward clutch
3
One-way clutch No.1
4
Front planetary carrier
5
Front sun gear
6
Front pinion gear
7
Front internal gear
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Reduction brake
12
One-way clutch No.2
13
Secondary sun gear
14
Secondary internal gear
15
Output gear
16
Ring gear (Differential)
17
Output

.

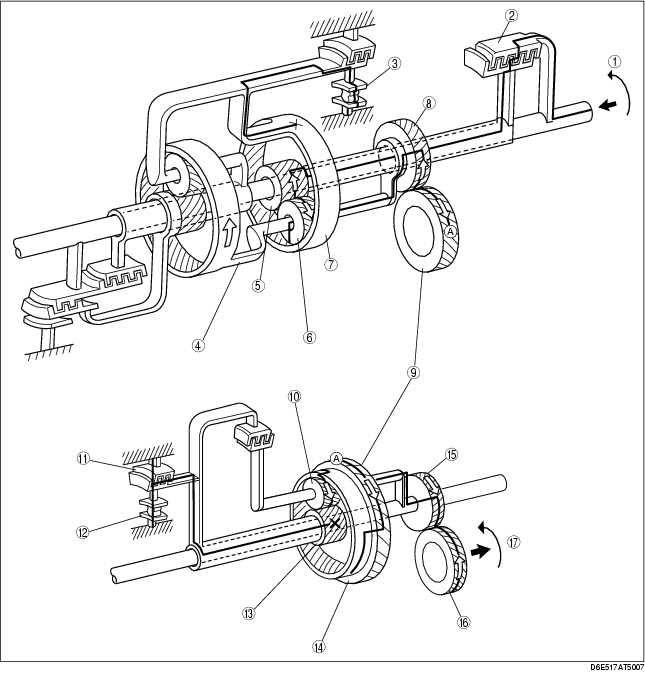

1
Input
2
Forward clutch
3
One-way clutch No.1
4
Front planetary carrier
5
Front sun gear
6
Front pinion gear
7
Front internal gear
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Reduction brake
12
One-way clutch No.2
13
Secondary sun gear
14
Secondary internal gear
15
Output gear
16
Secondary planetary carrier
17
Output

1GR (M range)

.

1
Input
2
Forward clutch
3
One-way clutch No.1
4
Low and reverse brake
5
Front planetary carrier
6
Front sun gear
7
Front pinion gear
8
Front internal gear
9
Primary gear
10
Secondary gear
11
Secondary pinion gear
12
Reduction brake
13
One-way clutch No.2
14
Secondary sun gear
15
Secondary internal gear
16
Output gear
17
Ring gear (Differential)
18
Output

.

1
Input
2
Forward clutch
3
One-way clutch No.1
4
Low and reverse brake
5
Front planetary carrier
6
Front sun gear
7
Front pinion gear
8
Front internal gear
9
Primary gear
10
Secondary gear
11
Secondary pinion gear
12
Reduction brake
13
One-way clutch No.2
14
Secondary sun gear
15
Secondary internal gear
16
Output gear
17
Secondary planetary carrier
18
Output

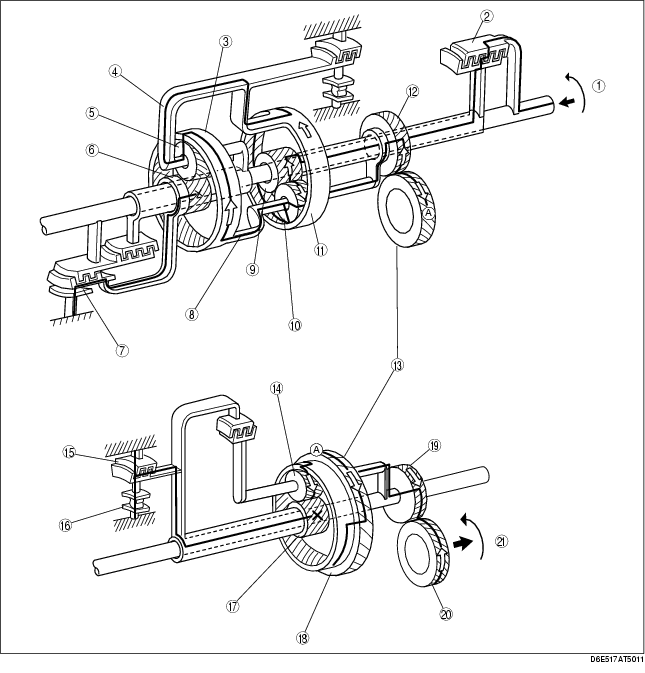

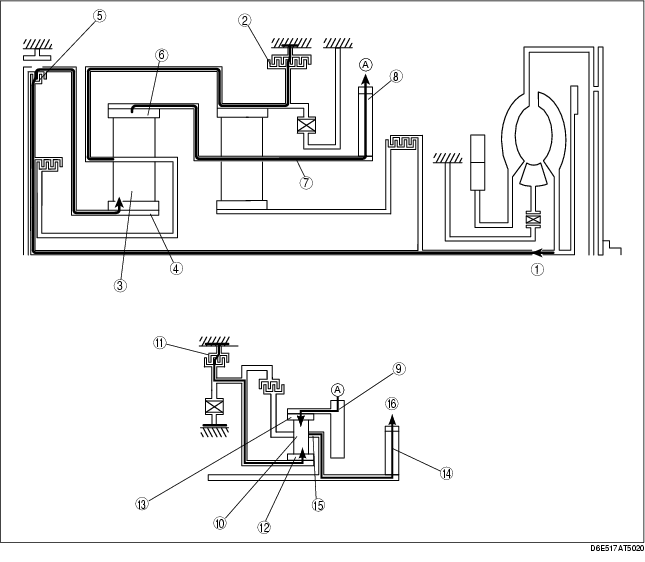

2GR

.

1
Input
2
Forward clutch
3
Rear internal gear
4
Rear planetary carrier
5
Rear pinion gear
6
Rear sun gear
7
2-4 brake band
8
Front planetary carrier
9
Front sun gear
10
Front pinion gear
11
Front internal gear
12
Primary gear
13
Secondary gear
14
Secondary pinion gear
15
Reduction brake
16
One-way clutch No.2
17
Secondary sun gear
18
Secondary internal gear
19
Output gear
20
Ring gear (Differential)
21
Output

.

1
Input
2
Forward clutch
3
Rear internal gear
4
Rear planetary carrier
5
Rear pinion gear
6
Rear sun gear
7
2-4 brake band
8
Front planetary carrier
9
Front sun gear
10
Front pinion gear
11
Front internal gear
12
Primary gear
13
Secondary gear
14
Secondary pinion gear
15
Reduction brake
16
One-way clutch No.2
17
Secondary sun gear
18
Secondary internal gear
19
Output gear
20
Secondary planetary carrier
21
Output

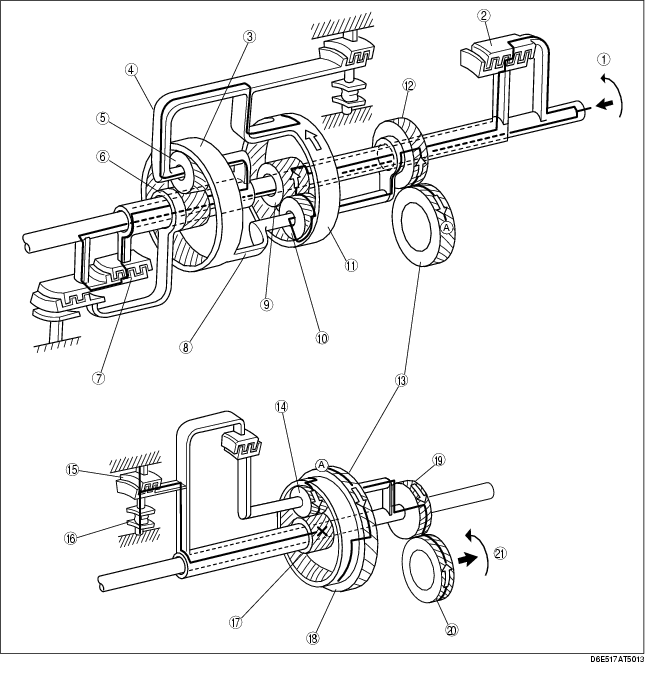

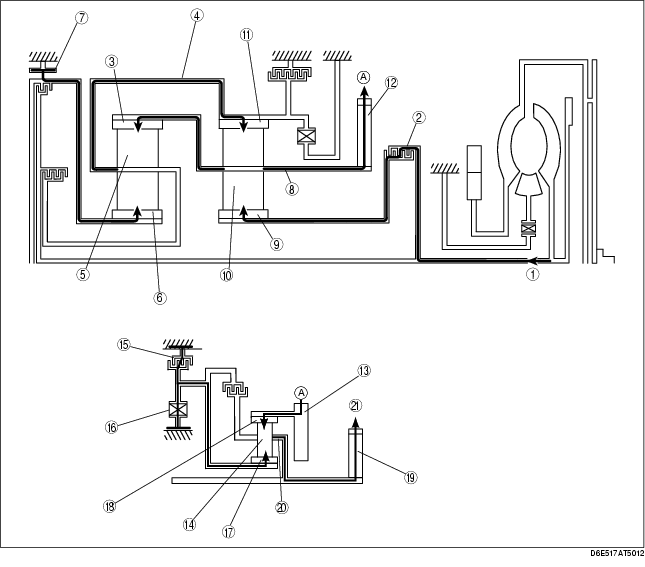

3GR

.

1
Input
2
Forward clutch
3
Rear internal gear
4
Rear planetary carrier
5
Rear pinion gear
6
Rear sun gear
7
3-4 clutch
8
Front planetary carrier
9
Front sun gear
10
Front pinion gear
11
Front internal gear
12
Primary gear
13
Secondary gear
14
Secondary pinion gear
15
Reduction brake
16
One-way clutch No.2
17
Secondary sun gear
18
Secondary internal gear
19
Output gear
20
Ring gear (Differential)
21
Output

.

1
Input
2
Forward clutch
3
Rear internal gear
4
Rear planetary carrier
5
Rear pinion gear
6
Rear sun gear
7
3-4 clutch
8
Front planetary carrier
9
Front sun gear
10
Front pinion gear
11
Front internal gear
12
Primary gear
13
Secondary gear
14
Secondary pinion gear
15
Reduction brake
16
One-way clutch No.2
17
Secondary sun gear
18
Secondary internal gear
19
Output gear
20
Secondary planetary carrier
21
Output

4GR

.

1
Input
2
Rear internal gear
3
Rear pinion gear
4
Rear sun gear
5
2-4 brake band
6
3-4 clutch
7
Front planetary carrier
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Reduction brake
12
One-way clutch No.2
13
Secondary sun gear
14
Secondary internal gear
15
Output gear
16
Ring gear (Differential)
17
Output

.

1
Input
2
Rear internal gear
3
Rear pinion gear
4
Rear sun gear
5
2-4 brake band
6
3-4 clutch
7
Front planetary carrier
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Reduction brake
12
One-way clutch No.2
13
Secondary sun gear
14
Secondary internal gear
15
Output gear
16
Secondary planetary carrier
17
Output

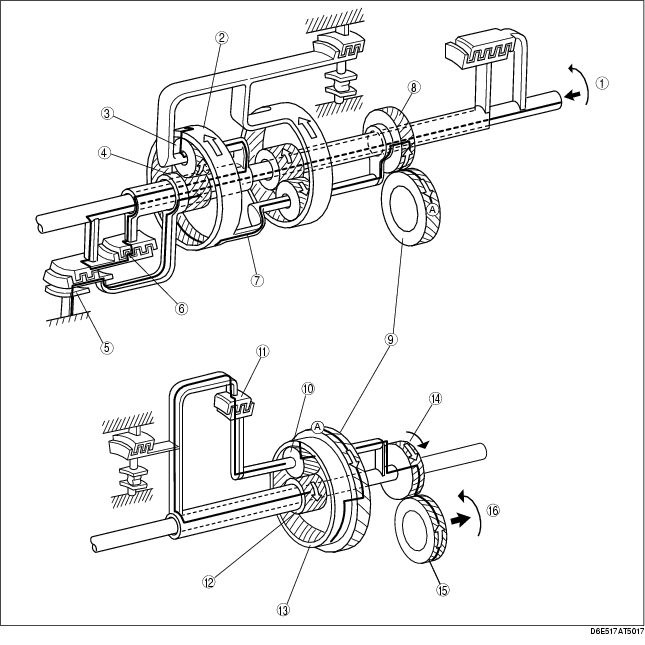

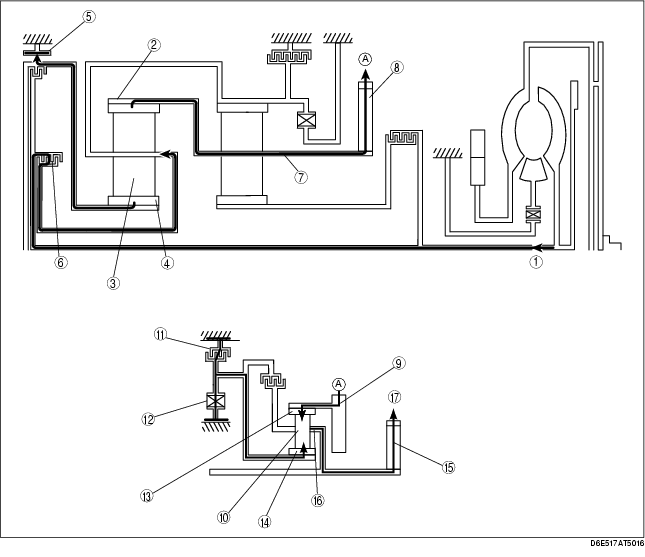

5GR

.

1
Input
2
Rear internal gear
3
Rear pinion gear
4
Rear sun gear
5
2-4 brake band
6
3-4 clutch
7
Front planetary carrier
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Direct clutch
12
Secondary sun gear
13
Secondary internal gear
14
Output gear
15
Ring gear (Differential)
16
Output

.

1
Input
2
Rear internal gear
3
Rear pinion gear
4
Rear sun gear
5
2-4 brake band
6
3-4 clutch
7
Front planetary carrier
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Direct clutch
12
Secondary sun gear
13
Secondary internal gear
14
Output gear
15
Secondary planetary carrier
16
Output

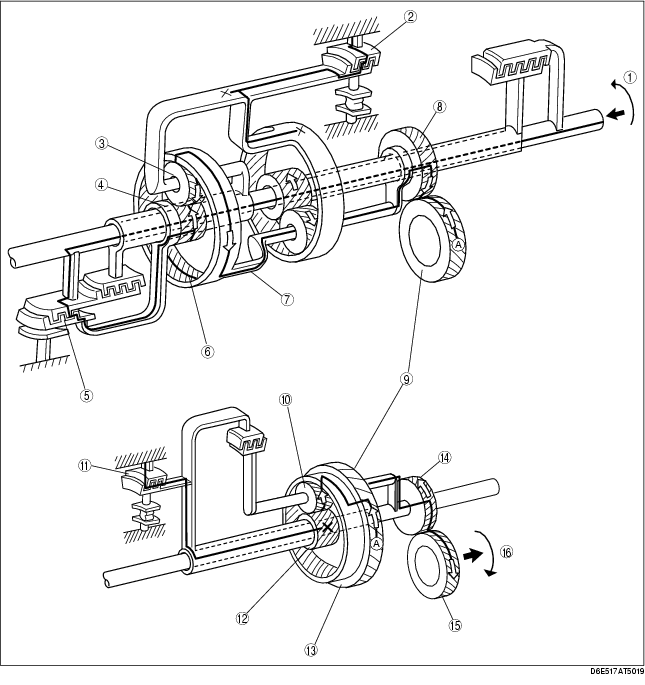

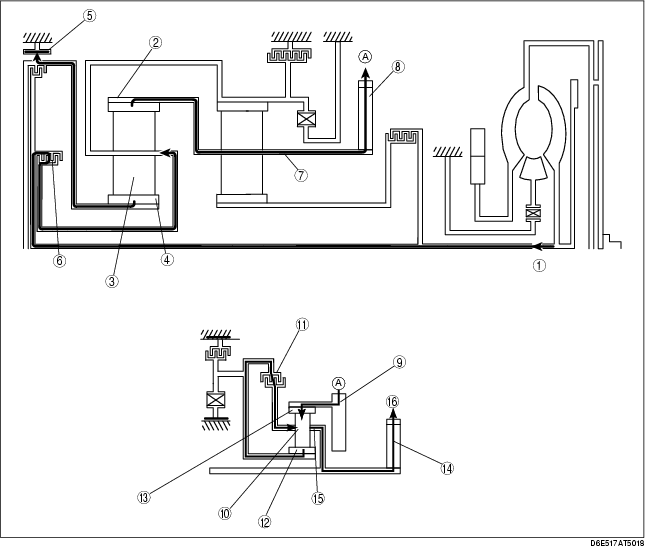

R position

.

1
Input
2
Low and reverse brake
5
Reverse clutch
4
Rear sun gear
3
Rear pinion gear
6
Rear internal gear
7
Front planetary carrier
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Reduction brake
12
Secondary sun gear
13
Secondary internal gear
14
Output gear
15
Ring gear (Differential)
16
Output

.

1
Input
2
Low and reverse brake
5
Reverse clutch
4
Rear sun gear
3
Rear pinion gear
6
Rear internal gear
7
Front planetary carrier
8
Primary gear
9
Secondary gear
10
Secondary pinion gear
11
Reduction brake
12
Secondary sun gear
13
Secondary internal gear
14
Output gear
15
Secondary planetary carrier
16
Output
