OUTPUT GEAR OUTLINE
D6E051719204A03

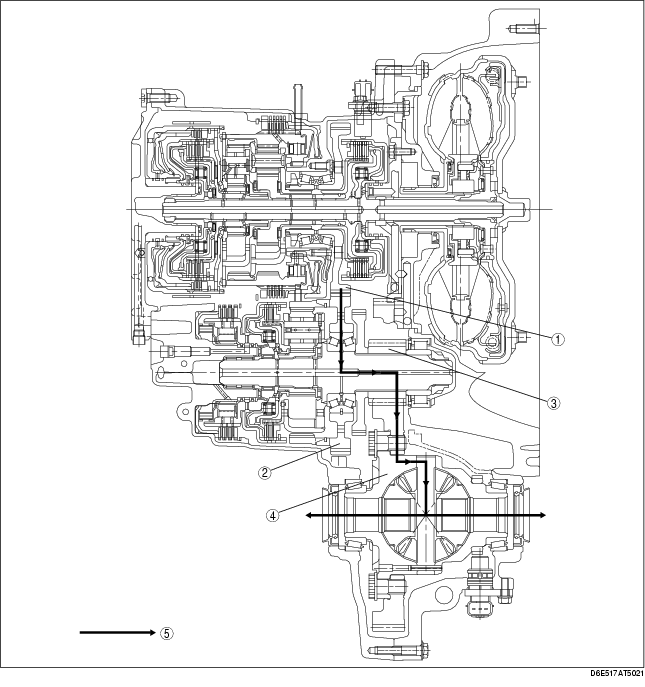

• The two-step final drive mechanism has been adopted by arranging the secondary gear and the output gear on the output gear shaft to miniaturize the transaxle.
|
1
|
Primary gear
|
|
2
|
Secondary gear
|
|
3
|
Output gear
|
|
4
|
Differential
|
|
5
|
Power flow
|
