CONTROL VALVE BODY CONSTRUCTION
D6E051721100A04

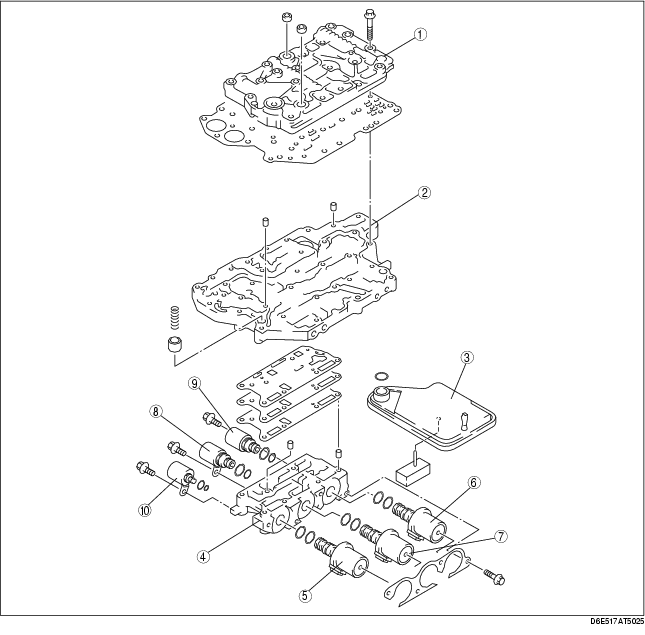

Primary Control Valve Body
• The primary control valve body is composed of three bodies: the upper control valve body, main control valve body, and the solenoid control valve body.
.
|
1
|
Upper control valve body
|
|
2
|
Main control valve body
|
|
3
|
Oil strainer
|
|
4
|
Solenoid valve body
|
|
5
|
Shift solenoid A
|
|
6
|
Shift solenoid B
|
|
7
|
Shift solenoid C
|
|
8
|
Shift solenoid D
|
|
9
|
Shift solenoid E
|
|
10
|
Pressure control solenoid A
|

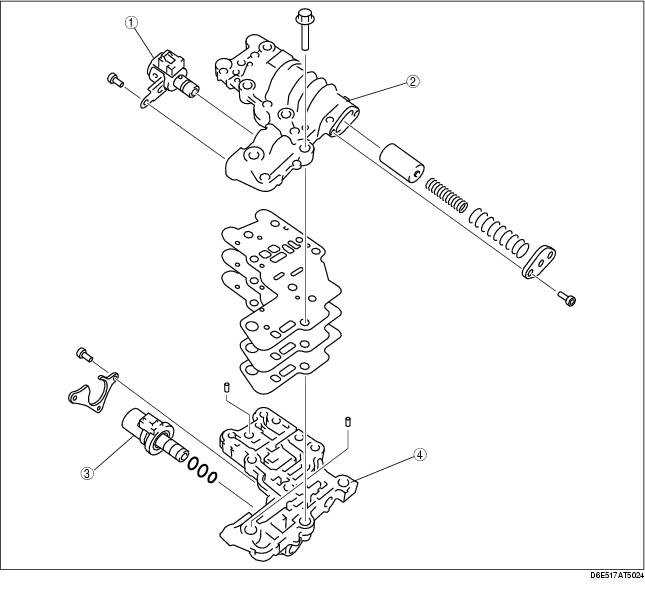

Secondary Control Valve Body
• The secondary control valve body is composed of two bodies: the secondary lower control valve body, and secondary main control valve body.
.
|
1
|
Shift solenoid F
|
|
2
|
Secondary lower control valve body
|
|
3
|
Pressure control solenoid B
|
|
4
|
Secondary main control valve body
|
