SHIFT SOLENOID D, E AND F (ON/OFF TYPE) FUNCTION

D6E051721101A05

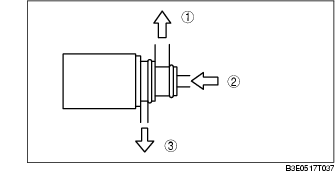

• An on/off type solenoid valve switches the supply drain of output port according to the electrical current flow switching.


1	Output port
2	Supply port • Solenoid reducing pressure (shift solenoid D and E) • Line pressure (shift solenoid F)
3	Drain
