AIM OF DEVELOPMENT

id000000100100

Product Concept

•  A global C-segment vehicle with four key values: Unmistakable and vibrant design, interior cabin that fits four adults comfortably, high-quality craftsmanship, and a high-balance vehicle that is fun-to-drive

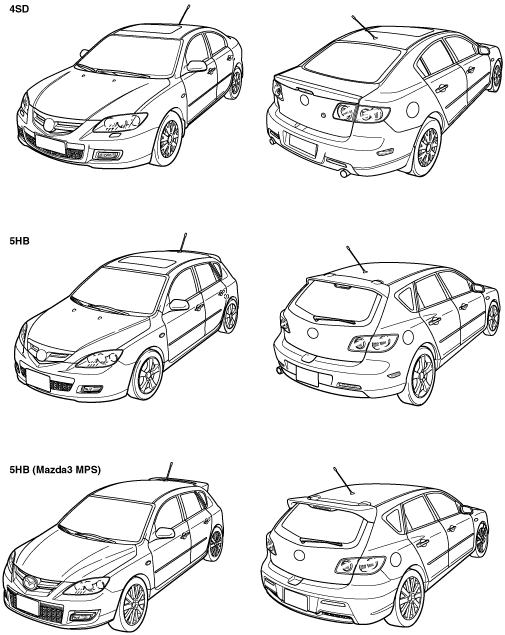

External View

am3zzn00001475

Vehicle Outline

Exterior design

•  Fun-to-drive with instinctively attractive styling

―  4SD

•   Dynamic and elegant sport styling has been achieved due to the fused form of the bonnet and compact cabin.

―  5HB

•  Advanced styling has been achieved due to the continuous form of the bonnet and body, and the flared fenders accentuating the body.

Interior design

•  A comfortable interior and sporty design incorporating Mazda’s inherited DNA

―  A simple, clean-cut dashboard with a spacious feel has been adopted.

―  An instrument cluster with an emphasized sportiness has been adopted.

―   Illumination that is both easily visible and comfortable for the eye has been adopted.

•  Interior space that fits four adults comfortably

―  An interior space that is surprisingly larger than thought when viewed from the exterior has been achieved due to the adoption of a long wheel base and elongated body.

―  An auto-light system that allows for constant visibility of the vehicle’s immediate surroundings has been adopted.

―  A full-auto wiper system allowing the driver to concentrate in any weather condition due to the steering wheel-integrated control has been adopted. This system features a rain sensor on the windshield which determines the rainfall conditions and automatically adjusts wipers to the optimal speed.

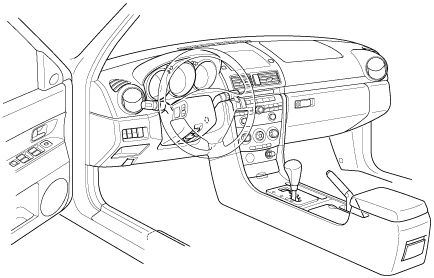

am3zzn00000886

•  Storage spaces that are spacious, simple and highly functional

―  Front seat storage has been improved due to the adoption of a large glove compartment that can hold items such as a PET bottle or a small backpack, and featuring a lid that can hold a tissue box or other small item.

―  A double-layered center-console box with an upper tray that can hold mobile telephones and other small-sized items has been adopted.

•  Luggage space

―  The luggage area size is class-topping in terms of area and features clean, nearly flat surfaces due to the under-floor positioning of the coil springs.

―  4SD

•  Double-link hinges for the trunk do not interfere with or damage luggage during loading/unloading.

―  5HB

•  A storage space is provided under the floor.

•  A flat luggage space is achieved by folding the split rear seat backs forward.

Engine

Gasoline engine

•  Mechanical

―  ZJ (1.3 L), ZY (1.5 L), Z6 (1.6 L), LF (2.0 L), L3 (2.3 L), L3 Turbo (2.3 L with turbocharger) engines have been adopted.

―  Due to the adoption of direct injection and the turbocharger, high output and fuel economy at low to medium engine speeds have been achieved. (L3 Turbo)

―  Variable valve timing that optimally adjusts valve timing in accordance with driving conditions has been adopted to all engines.

•  Intake-air system

―  With the adoption of the variable valve timing system to all engines, which controls intake valve timing in accordance with driving conditions to attain highly efficient air charging, engine output is improved at all engine speeds.

―  An electronic throttle valve has been adopted for all models resulting in precise intake air control.

―  A turbocharger has been adopted, largely improving engine output. (L3 Turbo)

Diesel engine

•  MZ-CD 1.6 (Y6)

―  Diesel particulate filter systems have proved to be an effective means of reducing particulate emissions (High power-Euro 4).

―  The common rail injection system is a pressure accumulator injection system. This means that with this system the fuel pressure is constantly present, whilst on conventional systems (for example with the distributor type fuel injection pump), the fuel pressure always has to be generated for each injection process.

On the common rail injection system, therefore, pressure generation and fuel injection are separated. The injection pressure is, to a great extent, generated irrespective of engine speed and injected fuel quantity and is made available in a common rail ready for injection.

―  Advantages of the common rail injection system are:

•  high injection pressure up

•  injected fuel quantity, fuel pressure in the high pressure accumulator (rail) and start of injection all matched to the operating conditions

•  variable pilot injection to optimize combustion quality

•  advanced post injection to raise the exhaust gas temperature during the regeneration process of the diesel particulate filter (High power-Euro 4)

•  retarded post injection to raise the exhaust gas temperature during the regeneration process of the diesel particulate filter (High power-Euro 4)

•  low tolerances and high precision over the entire service life

•  MZR-CD (RF Turbo)

―  The following improvements have been realized due to the adoption of the common rail type fuel injection system.

•  Particulate matter (PM) reduction has been realized due to the extremely high pressure fuel injection system.

•  NOx and PM reduction have been realized due to an optimized combustion condition and enhanced flexibility in injection volume, timing, and pulse

―  A diesel particulate filter system has been adopted to remove particulate matter (PM) in the exhaust gas.

Suspension and steering

•  Front suspension

―  A strut-type front suspension has been adopted.

―  Due to the tight connection of the four-point rubber mounts to the body, high handling stability and improved riding comfort is provided together with low NVH (Noise, Vibration, Harshness) with no loss of mount rigidity.

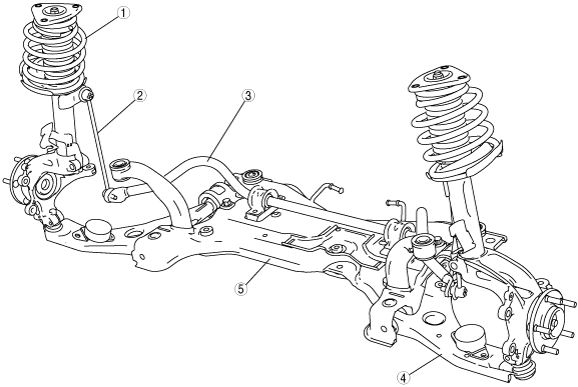

am3zzn00000167

1	Front shock absorber and coil spring
2	Front stabilizer control link
3	Front stabilizer
4	Front lower arm
5	Front crossmember

•  Rear suspension

―   An E-type multi-link rear suspension has been adopted.

―   A wider luggage compartment is ensured due to the separated positioning of the shock absorber and coil spring.

―  Also due to the separated positioning of the shock absorber and coil spring, side force on the shock absorber is reduced so that the suspension system operates smoothly and riding comfort is improved.

am3zzn00000168

1	Rear shock absorber
2	Rear crossmember
3	Rear trailing link
4	View from the rear of the vehicle
5	Rear lower arm
6	Rear coil spring
7	Rear stabilizer control link
8	Rear stabilizer
9	Rear lateral link
10	Rear upper arm

•  Power steering

―  Engine-speed-sensing power steering has been adopted for vehicles with the ZJ, Z6, L3 Turbo engine, MZR-CD (RF-Turbo) engine.

―  For vehicles with the LF, L3, ZY, MZ-CD 1.6 (Y6) engine, excellent steering feel and smooth handling from low to high speeds is provided due to the adoption of Elector Hydraulic Power Assist Steering (EHPAS). Engine load is reduced, improving fuel economy, due to the adoption of an electric power steering oil pump.

L.H.D.

am3zzn00001650

1	Steering wheel
2	Steering column and shaft
3	Steering gear and linkage
4	Power steering oil pump
5	Cooling pipe
6	Electric power steering oil pump
7	Steering angle sensor
8	EHPAS control module (built into electric power steering oil pump)
9	Instrument cluster
10	EHPAS warning light
11	Power steering reserve tank
12	European specs.

R.H.D.

am3zzn00001651

1	Steering wheel
2	Steering column and shaft
3	Steering gear and linkage
4	Power steering oil pump
5	Cooling pipe
6	Electric power steering oil pump
7	Steering angle sensor
8	EHPAS control module (built into electric power steering oil pump)
9	Instrument cluster
10	EHPAS warning light
11	Power steering reserve tank

Brake

―  A brake pedal with an intrusion minimizing mechanism has been adopted. As a result, driver safety has been improved.

―  A tandem type master cylinder has been adopted, improving operability and response.

―  A large diameter, single diaphragm power brake unit with a mechanical assist mechanism has been adopted, improving braking force and safety. (except L3 Turbo)

―  A tandem diaphragm power brake unit with a mechanical assist mechanism has been adopted, improving braking force and safety. (L3 Turbo)

―  A vacuum pump has been adopted, improving braking force. (MZ-CD 1.6 (Y6), MZR-CD (RF-Turbo))

―  A large diameter, ventilated disc-type front brake has been adopted, improving braking force.

―  High rigidity, front brake calipers have been adopted on the front brakes for improved braking performance. (L3 Turbo)

―  A large diameter, solid disc-type rear brake has been adopted, improving braking force.

―  A wide width lining for the rear brake drum has been adopted, improving braking force.

European (L.H.D. U.K.) specs.

am3zzn00001270

1	Brake pedal
2	Master cylinder
3	Power brake unit
4	Vacuum pump (MZ-CD 1.6 (Y6), MZR-CD (RF-Turbo))
5	Front brake (disc)
6	Rear brake (disc)

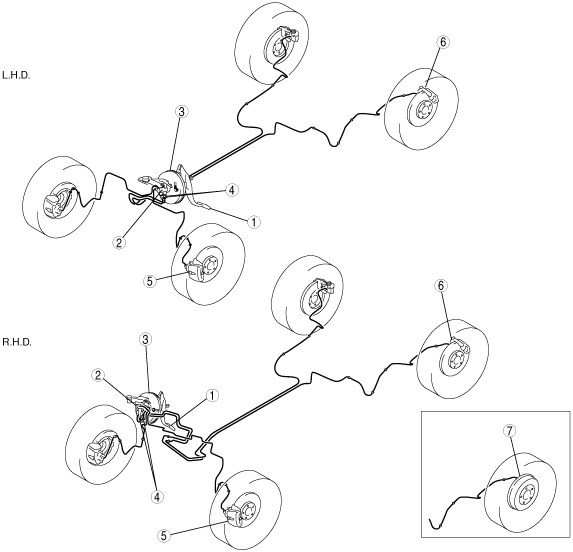

Australian, General (L.H.D. R.H.D.) specs.

am3zzn00001271

1	Brake pedal
2	Master cylinder
3	Power brake unit
4	Proportioning valve
5	Front brake (disc)
6	Rear brake (disc)
7	Rear brake (drum)

Transaxle

•  Manual transaxle

―  The F35M-R (ZY, ZJ, Z6 engine), the J65M-R (MZ-CD 1.6 (Y6) engine), the G66M-R (LF, L3 engine), the G35M-R (LF engine) and the A26M-R (L3 Turbo engine, MZR-CD (RF-Turbo) engine) manual transaxles have been adopted.

―  Linked, double-cone synchronizers have been adopted for the first and second gears to reduce shift effort during not only during fast but also slow operation and at cold temperatures.

F35M-R

am3zzn00000266

1	1st gear
2	Reverse idler gear
3	2nd gear
4	3rd gear
5	4th gear
6	5th gear
7	Secondary 5th gear
8	Secondary 4th gear
9	Secondary 3rd gear
10	Secondary 2nd gear
11	Secondary 1st gear
12	Differential gear
13	Secondary shaft
14	Primary shaft

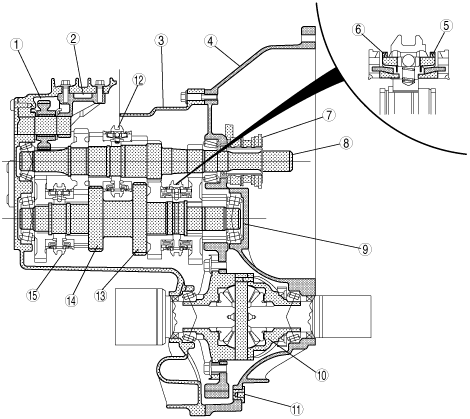

J65M-R

am3zzn00000659

1	Reverse idler gear
2	Reverse idler gear shaft mount
3	Transaxle case
4	Clutch housing
5	1st double synchronizer
6	2nd double synchronizer
7	Release cylinder component
8	Primary shaft
9	Secondary shaft
10	Differential
11	Drain plug
12	3rd and 4th synchronizer
13	3rd gear
14	4th gear
15	5th and reverse synchronizer

G66M-R

am3zzn00000272

1	1st gear
2	Reverse idler gear
3	Reverse gear
4	2nd gear
5	3rd gear
6	4th gear
7	5th gear
8	6th gear
9	Secondary 6th gear
10	Secondary 5th gear
11	Secondary 4th gear
12	Secondary 3rd gear
13	Secondary 2nd gear
14	Secondary shaft
15	Clutch hub sleeve (reverse gear)
16	Primary shaft
17	Reverse idler gear shaft
18	Differential gear

G35M-R

am3zzn00001030

1	1st gear
2	Reverse idler gear
3	Reverse gear
4	2nd gear
5	3rd gear
6	4th gear
7	5th gear
8	Secondary 5th gear
9	Secondary 4th gear
10	Secondary 3rd gear
11	Secondary 2nd gear
12	Secondary 1st gear
13	Secondary shaft
14	Clutch hub sleeve (reverse gear)
15	Primary shaft
16	Differential gear

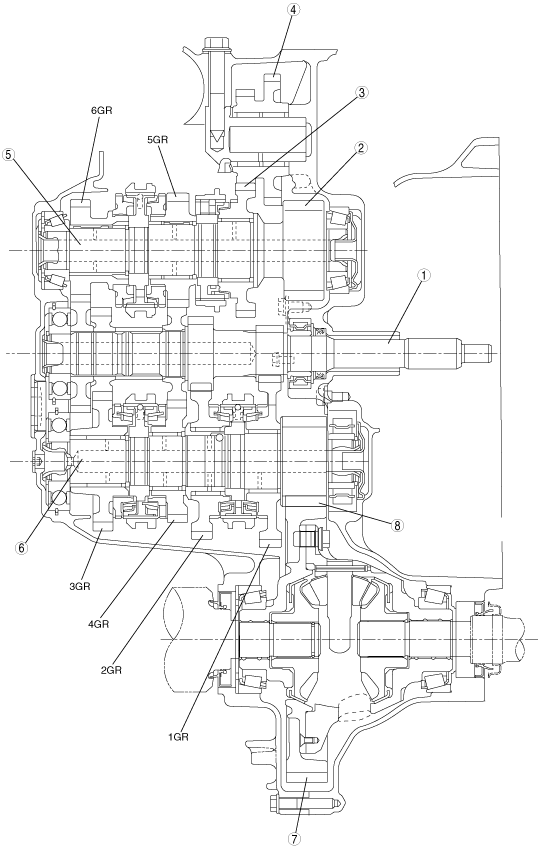

A26M-R

am3zzn00001428

1	Primary shaft
2	Final gear No.2
3	Reverse gear
4	Reverse idler gear
5	Secondary shaft No.2
6	Secondary shaft No.1
7	Differential ring gear
8	Final gear No.1

•  Automatic transaxle

―  The FN4A-EL (ZY, Z6, LF engine) and the FS5A-EL (LF, L3 engine) automatic transaxles have been adopted.

―  The automatic transaxle with added manual mode function has been adopted to provide manual-feel type shifting.

FN4A-EL

am3zzn00000624

1	Torque converter
2	Oil pump
3	Forward clutch
4	Front planetary gear
5	Rear planetary gear
6	3-4 clutch
7	Reverse clutch
8	2-4 brake band
9	Low and reverse brake
10	One-way clutch
11	Primary gear
12	Secondary gear
13	Output gear
14	Differential

FS5A-EL

am3zzn00001040

1	Torque converter
2	Oil pump
3	Input/turbine speed sensor
4	Forward clutch
5	Front planetary gear
6	Rear planetary gear
7	3-4 clutch
8	Reverse clutch
9	2-4 brake band
10	One-way clutch No.1
11	Low and reverse brake
12	Primary gear
13	Output gear
14	One-way clutch No.2
15	Reduction brake
16	Direct clutch
17	Secondary gear
18	Differential

Safety

•  An immobilizer system has been adopted. This anti-theft device prevents the engine from being started unless the encrypted identification code, transmitted from a special electronic chip embedded in the key, corresponds with the identification code registered in the vehicle.

•  Aerotwin wiper blades have been adopted for the windshield, improving visibility while driving.

•  World-class collision protection is provided due to the lightweight and highly rigid Mazda Advanced Impact-energy Distribution and Absorption System body.

•  Curtain air bags have been adopted that deploy and cover the front and rear side windows to protect the heads of front and rear passengers.

•  Side air bags that effectively protect the chest area have been adopted for the front seats.

•  Pre-tensioner and load limiter mechanisms have been adopted for the front seat belts.

•  A steering column designed to collapse horizontally to minimize impact to the driver’s head and chest has been adopted.

•  An intrusion minimizing brake pedal has been adopted.

•  Both ISOFIX and tether strap anchors are provided in the rear seat for child-seat fixing.

•  Advanced keyless and start system has been adopted.
