JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

id000000800500

Jacking Positions

Warning

• Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

• Use safety stands to support the vehicle after it has been lifted.

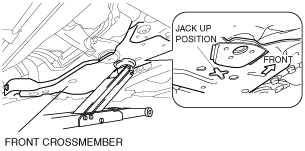

Front

Note

• To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.

• Near the center of the front crossmember.

am3zzw00000095

Rear

Caution

• Place a board (approx. 20 mm {0.78 in} thick) between the rear crossmember and the jack to prevent damage to the crossmember.

• At the center of the rear crossmember.

am3zzw00000108

Vehicle Lift Positions

Front and rear

Warning

• Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift.

Note

• The arrow at the rear of the vehicle indicates that it is the same as the illustration for the front of the vehicle.

am3zzw00000097

Safety Stand Positions

Front and rear

Note

• The arrow at the rear of the vehicle indicates that it is the same as the illustration for the front of the vehicle.

• Both sides of the vehicle, on side sills.

am3zzw00000098
