ENGINE SPECIFICATIONS [MZ-CD 1.6 (Y6)]

id0100c2113300

Specification

Item					Specifications
					MZ-CD 1.6 (Y6)
MECHANICAL
Cylinder arrangement and number					In-line, 4‐cylinder
Valve system					DOHC, timing belt and timing chain driven, 16 valves
Displacement		(ml {cc, cu in})			1,560 {1,560, 95.2}
Bore × stroke		(mm {in})			75 ×88.3 {2.95 ×3.48}
Compression ratio					18.3
LUBRICATION SYSTEM
Type					Force-fed type
Oil pressure (reference value) [oil temperature: 100°C {212°F}]			(kPa {kgf/cm2, psi}[rpm])		230—370 {2.35—3.77, 33.4—53.6} [2,000]
Oil pump	Type				Trochoid gear type
	Relief valve opening pressure (reference value)		(kPa {kgf/cm2, psi}		500 {5.10—72.5}
Oil filter	Type				Full-flow, paper element
Oil capacity (approx. quantity)	Total (dry engine)		(L {US qt, lmp qt})		4.2 {4.4, 3.7}
	Oil replacement		(L {US qt, lmp qt})		3.4 {3.6, 3.0}
	Oil and oil filter replacement		(L {US qt, lmp qt})		3.8 {4.0, 3.3}
COOLING SYSTEM
Type					Water-cooled, Electromotive
Coolant capacity (approx. quantity)			(L {US qt, lmp qt})		with heater: 9.0 {9.5, 7.9} without heater: 8.5 {9.0, 7.5}
Water pump					Centrifugal, V‐ribbed belt-driven
Thermostat		Opening temperature	(°C {°F})		80—84 {176—183}
Radiator		Type			Corrugated fin
Cooling system cap		Cap valve opening pressure	(kPa {kgf/cm2, psi})		135—155 {1.38—1.58, 19.6—22.4}
Cooling fan		Type			Electric
		Number of blades			7
		Outer diameter	(mm {in})		390 {15.4}
INTAKE-AIR SYSTEM
Air bypass valve (High power-Euro 4)		type			Electric
FUEL SYSTEM
Injector		Type			Solenoid injector
		Type of fuel delivery			Piezo-actuator driven
Fuel pump		Type of drive			Timing belt driven
Fuel tank		Capacity	(L {US gal, lmp gal})		55 {15, 12}
Fuel		Type			Cetane number of 51 or above
EMISSION SYSTEM
EGR valve		Type			Electric
Intake throttle valve (High power-Euro 4)		Type			Electric
Oxidation catalytic converter (Anti-seize grease)		Type			SAM-1C9107-A
Diesel particulate filter system (High power-Euro 4)		Type			Fuel additive
Fuel additive tank (High power-Euro 4)		Capacity	(L {US gal, lmp gal})		1.8 {0.48, 0.40}
PCV system		Type			Closed type
CHARGING SYSTEM
Battery		Voltage		(V)	12
		Type and capacity (5-h rate)		(A·h)	80D26L (55)
Generator		Out-put		(V-A)	12—150
		Regulated voltage			Controlled by PCM
		Self diagnosis function
STARTING SYSTEM
Starter			Type		Coaxial reduction
			Output	(kW)	1.7
CONTROL SYSTEM
CPP switch		Type			ON/OFF
ECT sensor		Type			Thermistor
Fuel temperature sensor		Type			Thermistor
IAT sensor (Inside MAF)		Type			Thermistor
CKP sensor		Type			Hall effect device
CMP sensor		Type			Hall effect device
APP sensor		Type			Potentiometer
MAF sensor		Type			Hot wire
MAP sensor		Type			Piezoelectric element
Fuel pressure sensor		Type			Piezoelectric element
BPP switch		Type			ON/OFF
IAT sensor No.2 (High power-Euro 4)		Type			Thermistor
Fuel-filler switch (High power-Euro 4)		Type			ON/OFF
Fuel additive level sensor (High power-Euro 4)		Type			Piezoelectric element
Catalyst exhaust gas temperature sensor (High power-Euro 4)		Type			Ceramic element

Recommended engine oil

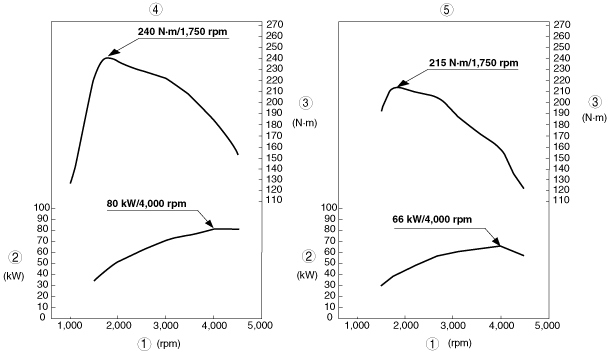

Engine Performance Curve

am3zzn00000545

1	Engine speed
2	Output
3	Torque
4	High power-Euro 4
5	Standard power-Euro 4
