ON-BOARD DIAGNOSTIC WIRING DIAGRAM [LF, L3]
id0102a3800100
MTX, LF ATX (FS5A-EL)

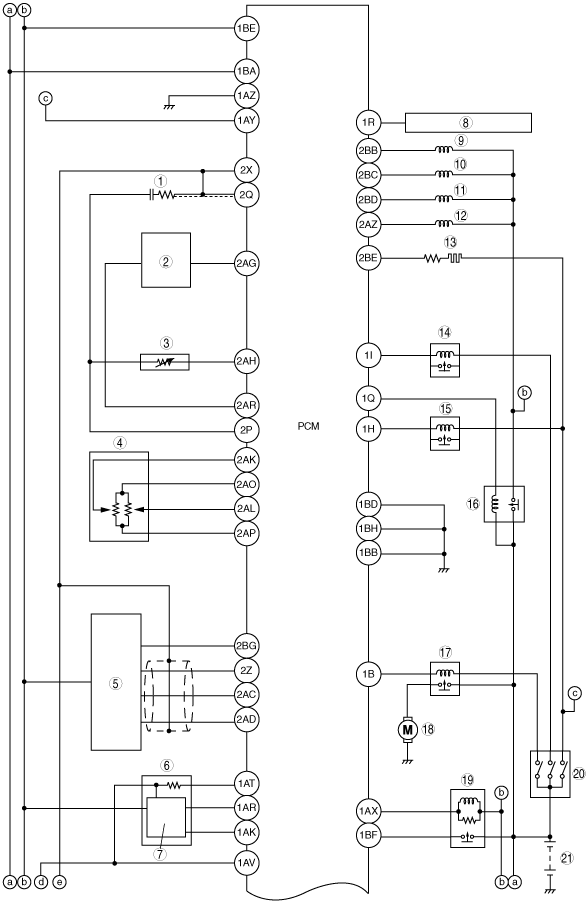

am3zzn00000926
|
|
1
|
HO2S
|
|
2
|
MAP sensor
|
|
3
|
ECT sensor
|
|
4
|
TP sensor
|
|
5
|
A/F sensor
|
|
6
|
IAT sensor
|
|
7
|
MAF sensor
|
|
8
|
Fan control module
|
|
9
|
Fuel injector No.1
|
|
10
|
Fuel injector No.2
|
|
11
|
Fuel injector No.3
|
|
12
|
Fuel injector No.4
|
|
13
|
HO2S heater
|
|
14
|
A/C relay
|
|
15
|
Fuel pump relay
|
|
16
|
Main relay
|
|
17
|
Starter relay
|
|
18
|
Starter
|
|
19
|
Drive-by-wire relay
|
|
20
|
Ignition switch
|
|
21
|
Battery
|

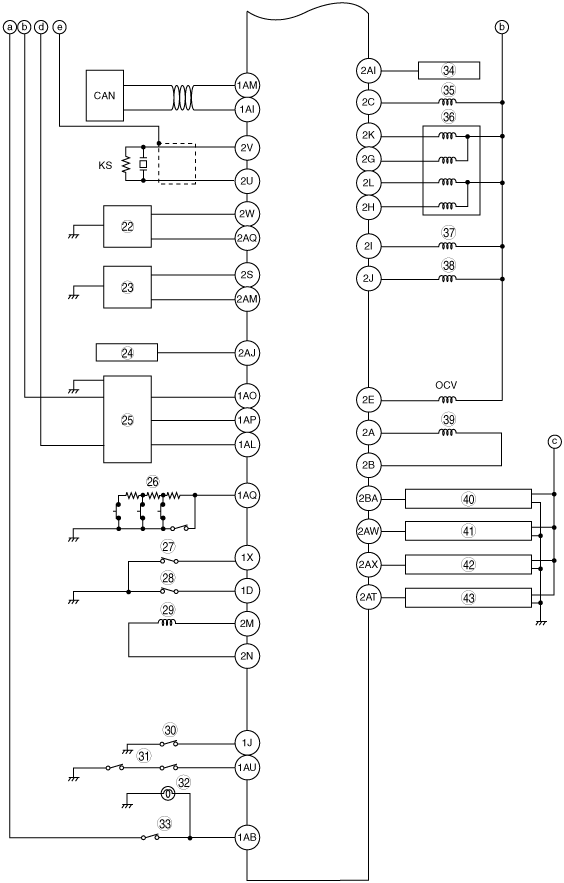

am3zzn00000964
|
|
22
|
CKP sensor
|
|
23
|
CMP sensor
|
|
24
|
Generator
|
|
25
|
APP sensor
|
|
26
|
Cruise control switch
|
|
27
|
Neutral switch
|
|
28
|
CPP switch
|
|
29
|
Vehicle speed sensor
|
|
30
|
Refrigerant pressure switch (meddle)
|
|
31
|
Refrigerant pressure switch (high and low)
|
|
32
|
Brake light
|
|
33
|
Brake switch
|
|
34
|
Generator
|
|
35
|
Purge solenoid valve
|
|
36
|
EGR valve
|
|
37
|
Variable tumble solenoid valve
|
|
38
|
Variable intake air solenoid valve
|
|
39
|
Throttle actuator
|
|
40
|
Ignition coil No.1
|
|
41
|
Ignition coil No.2
|
|
42
|
Ignition coil No.3
|
|
43
|
Ignition coil No.4
|
LF ATX (FN4A-EL), L3 ATX

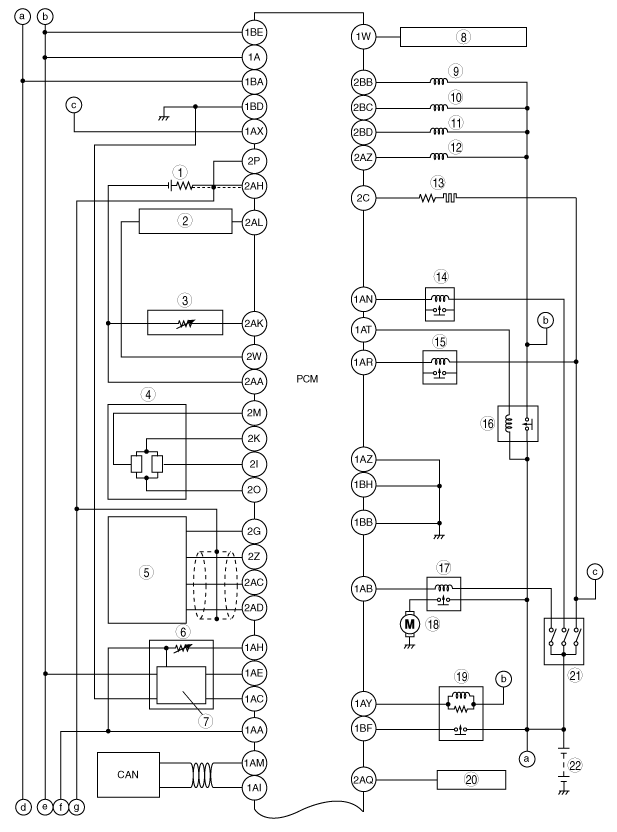

am3zzn00000965
|
|
1
|
HO2S
|
|
2
|
MAP sensor
|
|
3
|
ECT sensor
|
|
4
|
TP sensor
|
|
5
|
A/F sensor
|
|
6
|
IAT sensor
|
|
7
|
MAF sensor
|
|
8
|
Fan control module
|
|
9
|
Fuel injector No.1
|
|
10
|
Fuel injector No.2
|
|
11
|
Fuel injector No.3
|
|
12
|
Fuel injector No.4
|
|
13
|
HO2S heater
|
|
14
|
A/C relay
|
|
15
|
Fuel pump relay
|
|
16
|
Main relay
|
|
17
|
Starter relay
|
|
18
|
Starter
|
|
19
|
Drive-by-wire relay
|
|
20
|
Generator
|
|
21
|
Ignition switch
|
|
22
|
Battery
|

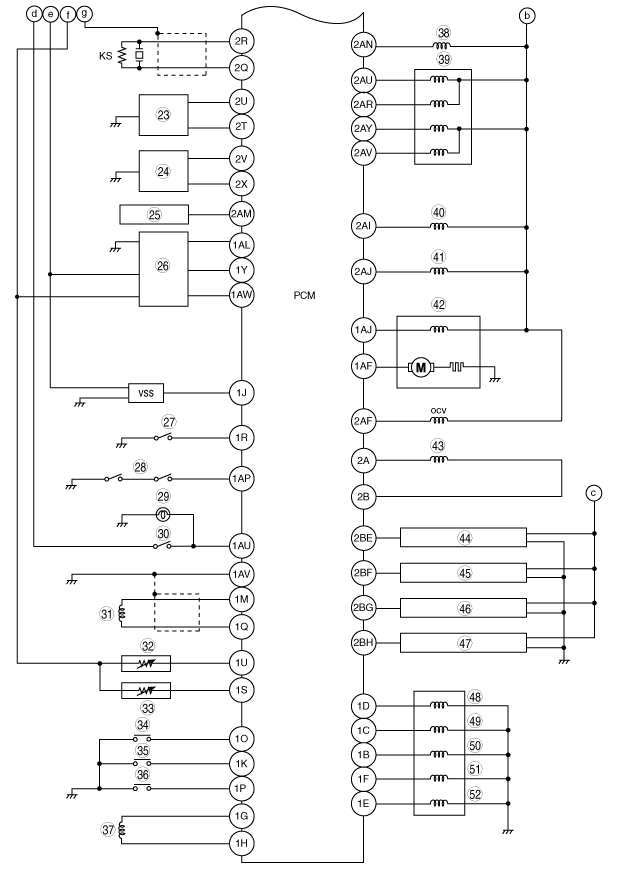

am3zzn00000966
|
|
23
|
CKP sensor
|
|
24
|
CMP sensor
|
|
25
|
Generator
|
|
26
|
APP sensor
|
|
27
|
Refrigerant pressure switch (meddle)
|
|
28
|
Refrigerant pressure switch (high and low)
|
|
29
|
Brake light
|
|
30
|
Brake switch
|
|
31
|
Input/turbine speed sensor
|
|
32
|
TFT sensor
|
|
33
|
TR switch
|
|
34
|
M range switch
|
|
35
|
Up switch
|
|
36
|
Down switch
|
|
37
|
Pressure control solenoid
|
|
38
|
Purge solenoid valve
|
|
39
|
EGR valve
|
|
40
|
Variable tumble solenoid valve
|
|
41
|
Variable intake air solenoid valve
|
|
42
|
EVAP system leak detection pump
|
|
43
|
Throttle actuator
|
|
44
|
Ignition coil No.1
|
|
45
|
Ignition coil No.2
|
|
46
|
Ignition coil No.3
|
|
47
|
Ignition coil No.4
|
|
48
|
Shift solenoid C
|
|
49
|
Shift solenoid B
|
|
50
|
Shift solenoid A
|
|
51
|
Shift solenoid E
|
|
52
|
Shift solenoid D
|
