ON-BOARD DIAGNOSTIC WIRING DIAGRAM[ZJ, ZY, Z6]
id0102c1800100
Without Throttle Valve Actuator
With immobilizer system
am3zzw00003507
|

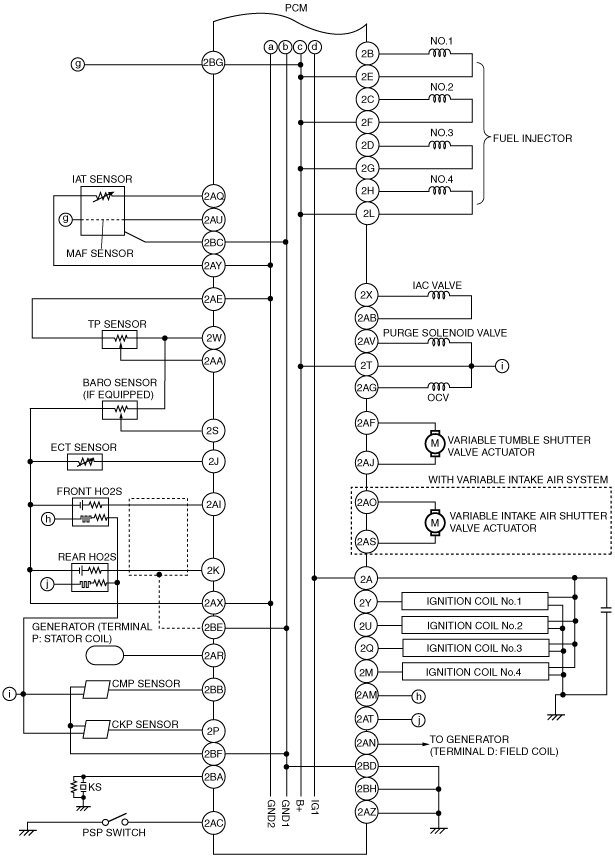

am3zzw00003499
|
Without immobilizer system

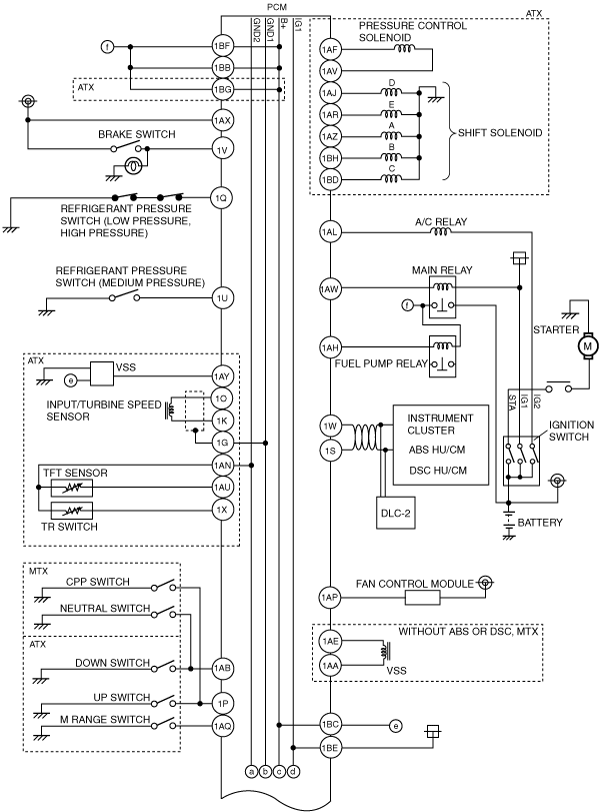

am3zzw00003508
|
am3zzw00003500
|
With Throttle Valve Actuator
With immobilizer system

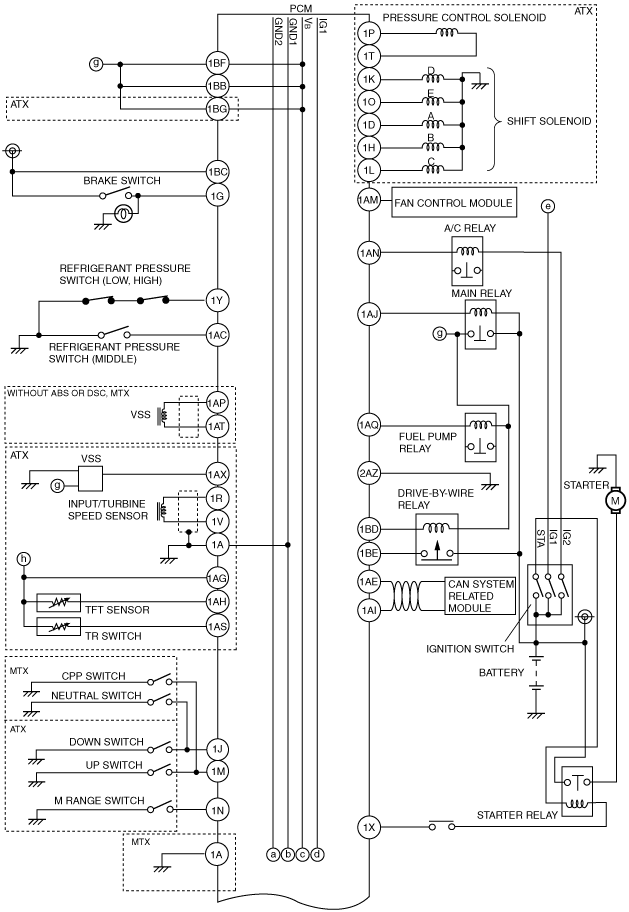

am3zzw00003496
|

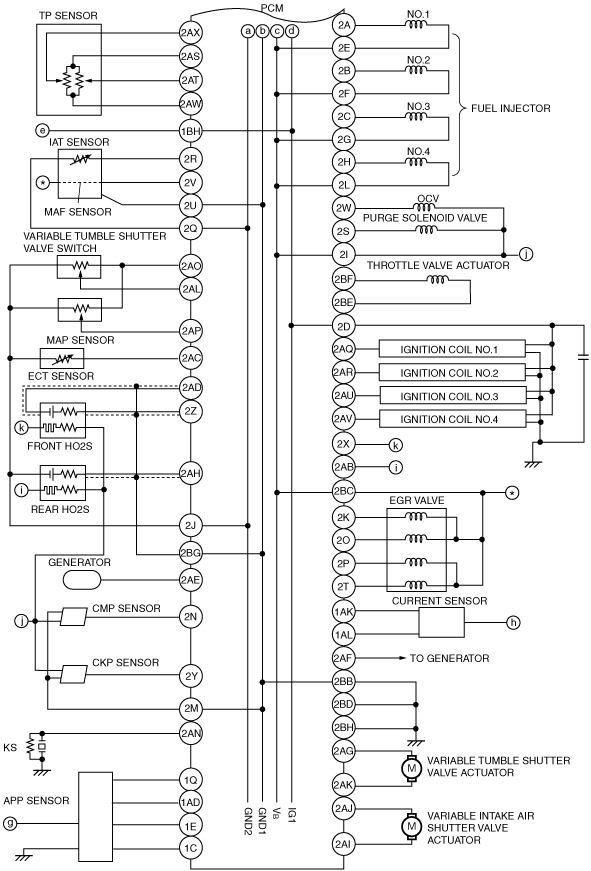

am3zzw00003497
|
Without immobilizer system

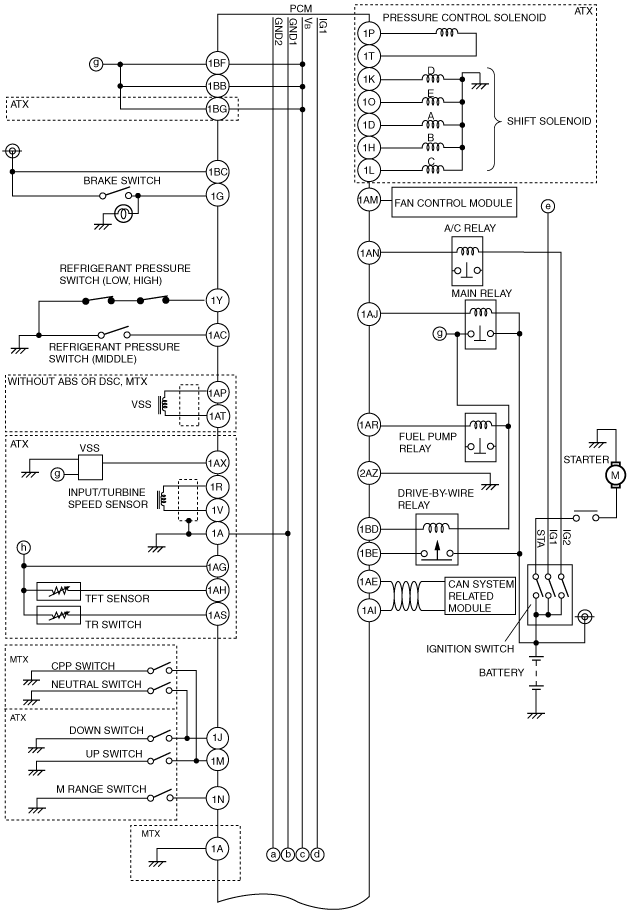

am3zzw00003498
|
am3zzw00003497
|
