ON-BOARD DIAGNOSTIC OUTLINE[MZ-CD 1.6 (Y6)]
id0102c3100100
Features
|
To meet EOBD regulations
|
• Diagnostic test modes adopted
|
|
Improved serviceability
|
• DTCs adopted
• PID/DATA monitor function adopted
• Simulation test function adopted
|

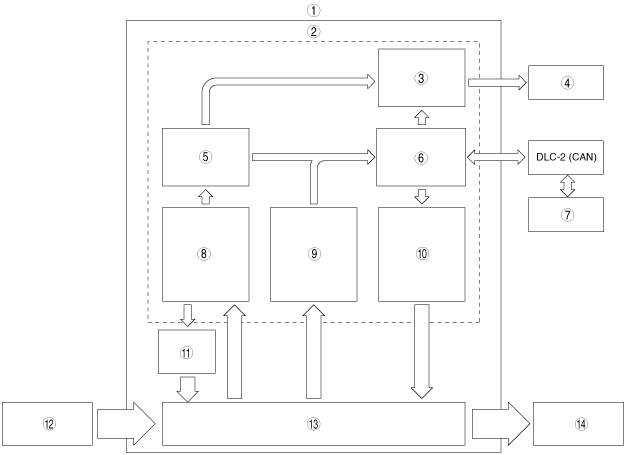

Block Diagram
am3zzn00000546
|
|
1
|
Control module
|
|
2
|
OBD system
|
|
3
|
Malfunction indication function (PCM)
|
|
4
|
MIL (PCM)
|
|
5
|
Memory function
|
|
6
|
Tester communication function
|
|
7
|
Mazda Modular Diagnostic System (M-MDS)
|
|
8
|
Detection function
|
|
9
|
PID data monitor function
|
|
10
|
Simulation test function
|
|
11
|
Fail-safe function (PCM)
|
|
12
|
Input device
|
|
13
|
Engine control system
|
|
14
|
Output device
|
