CYLINDER HEAD CONSTRUCTION[LF, L3]
id0110a0100300
• The cylinder head is made of a high heat conductive, lightweight aluminium alloy, which is quenched.
• Compact, pentroof-type combustion chambers have been adopted. The spark plugs are mounted at the top of the combustion chambers to improve combustion efficiency.
• The intake/exhaust port layout is a cross flow type, (the angle between two valves is 39°, the two intake valves and the two exhaust valves per cylinder) which improves air intake/exhaust efficiency.
• The cylinder head bolts are plastic region tightening bolts to be tightened in five steps to insure tightening stability.
|

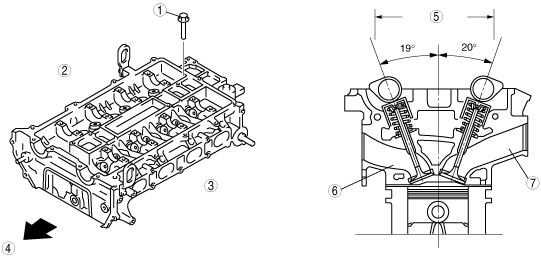

1
|
Cylinder head bolt
|
|
2
|
Exhaust side
|
|
3
|
Intake side
|
|
4
|
Engine front side
|
|
5
|
Angle between two valves
|
|
6
|
Exhaust port
|
|
7
|
Intake port
|
