DRIVE BELT CONSTRUCTION [LF, L3]

id0110a0102500

•  A generator drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
•  With the adoption of stretch-type A/C drive belt, specified tension of the belt is maintained.Perform A/C drive belt removal/installation using the SST.

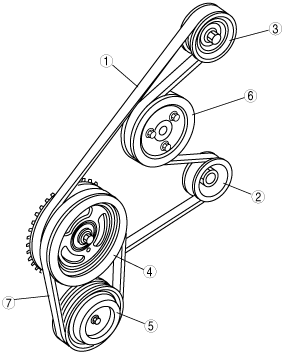

am3zzn00002408

1
Generator drive belt
2
Generator pulley
3
Drive belt auto tensioner pulley
4
Crankshaft pulley
5
A/C compressor pulley
6
Water pump pulley
7
A/C drive belt
