CYLINDER HEAD GASKET REPLACEMENT [LF, L3]

id0110a0800700

Warning
•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION [LF, L3].)

1.  Remove the timing chain. (See TIMING CHAIN REMOVAL/INSTALLATION [LF, L3].)

2.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L3].)

3.  Disconnect the following parts.

(1)  WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L3].)
(2)  Radiator upper hose
(3)  Water hose
(4)  Heater hose
(5)  wiring harness

4.  To firmly support the engine, first set the engine jack and attachment to the oil pan.

am3zzw00010253

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  Inspect the compression. (See COMPRESSION INSPECTION [LF, L3].)

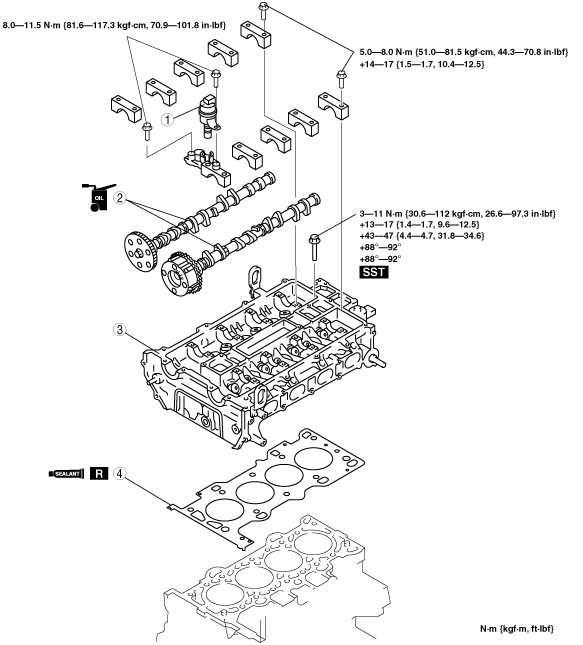

am3zzw00010223

1
Oil control valve (OCV)
2
Camshaft
(See Camshaft Removal Note.)
(See Camshaft Installation Note.)
3
Cylinder head
(See Cylinder Head Removal Note.)
(See Cylinder Head Installation Note.)
4
Cylinder head gasket
(See Cylinder Head Gasket Installation Note.)


Camshaft Removal Note

Note
•  The cylinder head and the camshaft caps are numbered to be reassembled in their original position correctly. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.

1.  Loosen the camshaft cap bolts in 2—3 passes in the order shown in the figure.

am3zzw00010218


Cylinder Head Removal Note

1.  Loosen the cylinder head bolts in 2—3 passes in the order shown in the figure.

am3zzw00010219


Cylinder Head Gasket Installation Note

1.  Apply silicone sealant to the areas shown in the figure.

Caution
•  Install the cylinder head gasket and cylinder head before the applied silicone sealant starts to harden.
acxaaw00001646
Thickness
4—7 mm {0.16—0.27 in}

2.  Install the cylinder block with a new cylinder head gasket.

3.  Apply silicone sealant to the areas shown in the figure.

acxaaw00001647

Thickness
4—7 mm {0.16—0.27 in}

4.  Install the cylinder head referring to the Cylinder Head Installation Note.


Cylinder Head Installation Note

1.  Measure the length of each cylinder head bolt.

•  Replace any that exceeds maximum length.
am3zzw00010220
Cylinder Head Bolt Length L
145.2—145.8 mm {5.717—5.740 in}
Cylinder Head Bolt Maximum
146.5 mm {5.767 in}

2.  Tighten the cylinder head bolts in the order shown with the following 5 steps using the SST (49 D032 316).

am3zzw00010221

Tightening procedure
1st step: 3—11 N·m {30.6—112 kgf·cm, 26.6—97.3 in·lbf}
2nd step: 13—17 N·m {1.4—1.7 kgf·m, 9.6—12.5 ft·lbf}
3rd step: 43—47 N·m {4.4—4.7 kgf·m, 31.8—34.6 ft·lbf}
4th step: 88°—92°
5th step: 88°—92°


Camshaft Installation Note

1.  Apply the gear oil (SAE No. 90 or equivalent) to each journal of the cylinder head as shown in the figure.

am3zzw00004592

2.  Set the cam position of No.1 cylinder at the top dead center (TDC) and install the camshaft.

3.  Apply the gear oil (SAE No. 90 or equivalent) to each journal of the camshaft as shown in the figure.

am3zzw00004593

4.  Temporarily tighten the camshaft bearing caps evenly in 2—3 passes.

5.  Tighten the camshaft cap bolts in the order shown with the following two steps.

am3zzw00010222

Tightening procedure
1st step: 5.0—8.0 N·m {51.0—81.5 kgf·cm, 44.3—70.8 in·lbf}
2nd step: 14—17 N·m {1.5—1.7 kgf·m, 10.4—12.5 ft·lbf}
