CYLINDER HEAD CONSTRUCTION[ZJ, ZY, Z6]
id0110b1100300
• The cylinder head is made of a highly heat conductive, lightweight, and aluminum alloy.
• Compact, pentroof combustion chambers have been adopted. The spark plugs are mounted at the top of the combustion chambers to improve combustion efficiency.
• The intake/exhaust port layout is a cross flow type, (the angle between two valves is 30°, two intake valves and two exhaust valves per cylinder) which improves air intake/exhaust efficiency.
• The cylinder head bolts are plastic region tightening bolts, tightened in three steps to insure tightening stability.

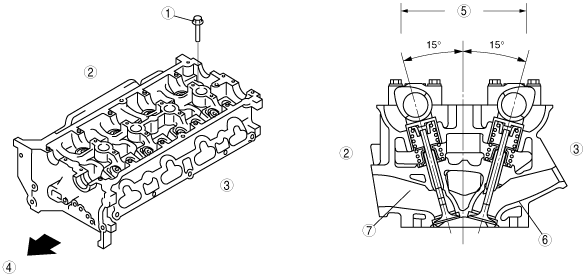

1
|
Cylinder head bolt
|
2
|
Exhaust side
|
3
|
Intake side
|
4
|
Engine front side
|
5
|
The angle between two valves
|
6
|
Intake port
|
7
|
Exhaust port
|
