ENGINE MOUNT OUTLINE[ZJ, ZY, Z6]

id0110b1101400

•  The pendulum-type layout of the engine mounting reduces noise in the cabin.
•  The engine is supported at three points, and simplification of engine mount components has been attained.
•  An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.
•  The surface of the No.3 engine mount is made of aluminum alloy to decrease weight.

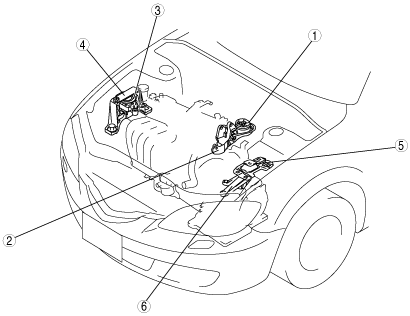

b3e0110t009

1
No.1 engine mount rubber
2
No.1 engine mount bracket
3
No.3 engine mount rubber
4
No.3 engine mount joint bracket
5
No.4 engine mount rubber
6
No.4 engine mount bracket
