CRANKSHAFT PULLEY CONSTRUCTION[ZJ, ZY, Z6]
id0110b1101800
• A crankshaft position (CKP) signal detecting plate has been adopted for the crankshaft pulley.
• A torsional damper, which prevents the crankshaft from wobbling, has also been adopted on the crankshaft.

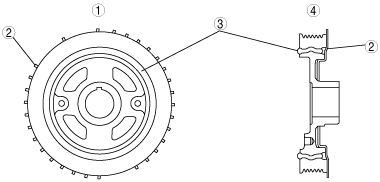

b3e0110t016
1
Front view
2
Plate for CKP sensor signal detection
3
Torsional damper
4
Cross-sectional view
