VARIABLE VALVE TIMING MECHANISM OUTLINE[ZJ, ZY, Z6]

id0110b1101900

• A variable timing mechanism has been adopted that realizes optimum valve timing according to engine operation conditions by continuously modifying the phases of the intake camshaft and crankshaft.

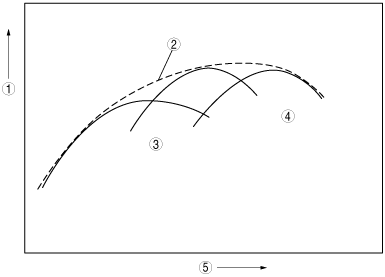

b3e0110t023

1

Torque

2

Engine with variable valve timing mechanism

3

Low-middle speed engine

4

High speed engine

5

Engine speed

1	Torque
2	Engine with variable valve timing mechanism
3	Low-middle speed engine
4	High speed engine
5	Engine speed
